      COB Pro Series - White Prime CRI95 1-Step 24V 480Chips/M 8mm - 9422

      Features
      -
      1. High CRI minimum in 95, and tiny SDCM Minimum in 1-step.
      2. Homogeneous and soft linear lighting performance for 5M[16.4ft.] length.
      3. Premium milky bounding wall structure design for better light uniformity.
      4. Use thick copper that is superior to products on the market, to ensure consistency in voltage and brightness for the entire reel.
      5. Adopting an exclusively designed protective structure, with excellent bending resistance, strong reliability, and stable quality.
      6. Waterproof available in IP65 and IP67 Plus for indoor and outdoor scenes.
      7. 50,000 hours lifespan and 5-year warranty.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength

      Brightness

      @CRI95

      Light Efficiency

      @CRI95

      Brightness

      @CRI95

      Light Efficiency

      @CRI95

      Brightness

      @CRI95

      		 Light Efficiency

      Beam

      Angle

      		 IP Rating

      GL-XFCOBXX-24-CV-480-9422

      		 L5000*W8*H2.3mm
      [L197*W0.31*H0.09in.]

      50mm [1.97in.]

      COB

      (Chip On Board)

      1-Step SDCM

      480chips/M

      [146chips/ft.]

      24VDC

      12W/M

      [3.7W/ft.]

      2500K

      2700K

      3000K

      3500K

      4000K

      830lm/M[253lm/ft.]
      (2700K)

      		 69lm/W
      (2700K)

      940lm/M[285lm/ft.]
      (2700K)

      78lm/W

      (2700K)

      		 1130lm/M[345lm/ft.]
      (3000K)      		 94lm/W
      (3000K)      		 150°

      IP20/

      IP65/

      IP67 Plus

      [Dry/Wet]
      1060lm/M[322lm/ft.]
      (3500K)      		 88lm/W
      (3500K)      		 1020lm/M[310lm/ft.]
      (4000K)      		 85lm/W
      (4000K)
      Download
      -

      • Datasheet - COB Pro Series - White Prime - 9422

      • Spectrum Report - COB Pro Series - White Prime - 9422

      • IES Report - COB Pro Series - White Prime - 9422

      Details
      -








      Application

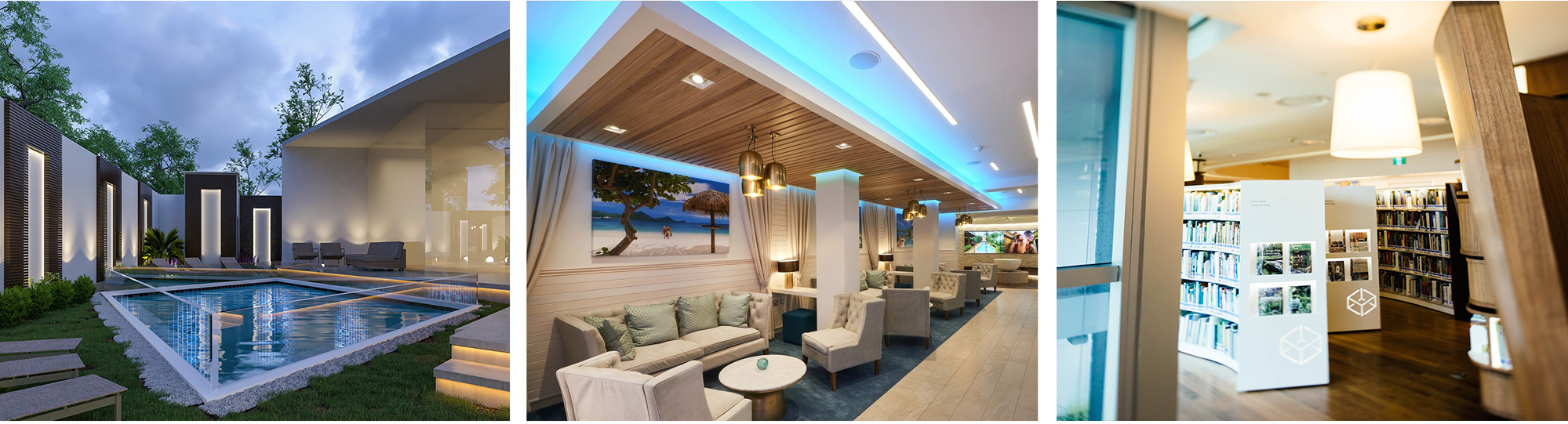

      Iindirect decorative lighting for table, showcase, shelf, cabinet, corridor, stair, cove, ceiling etc.
