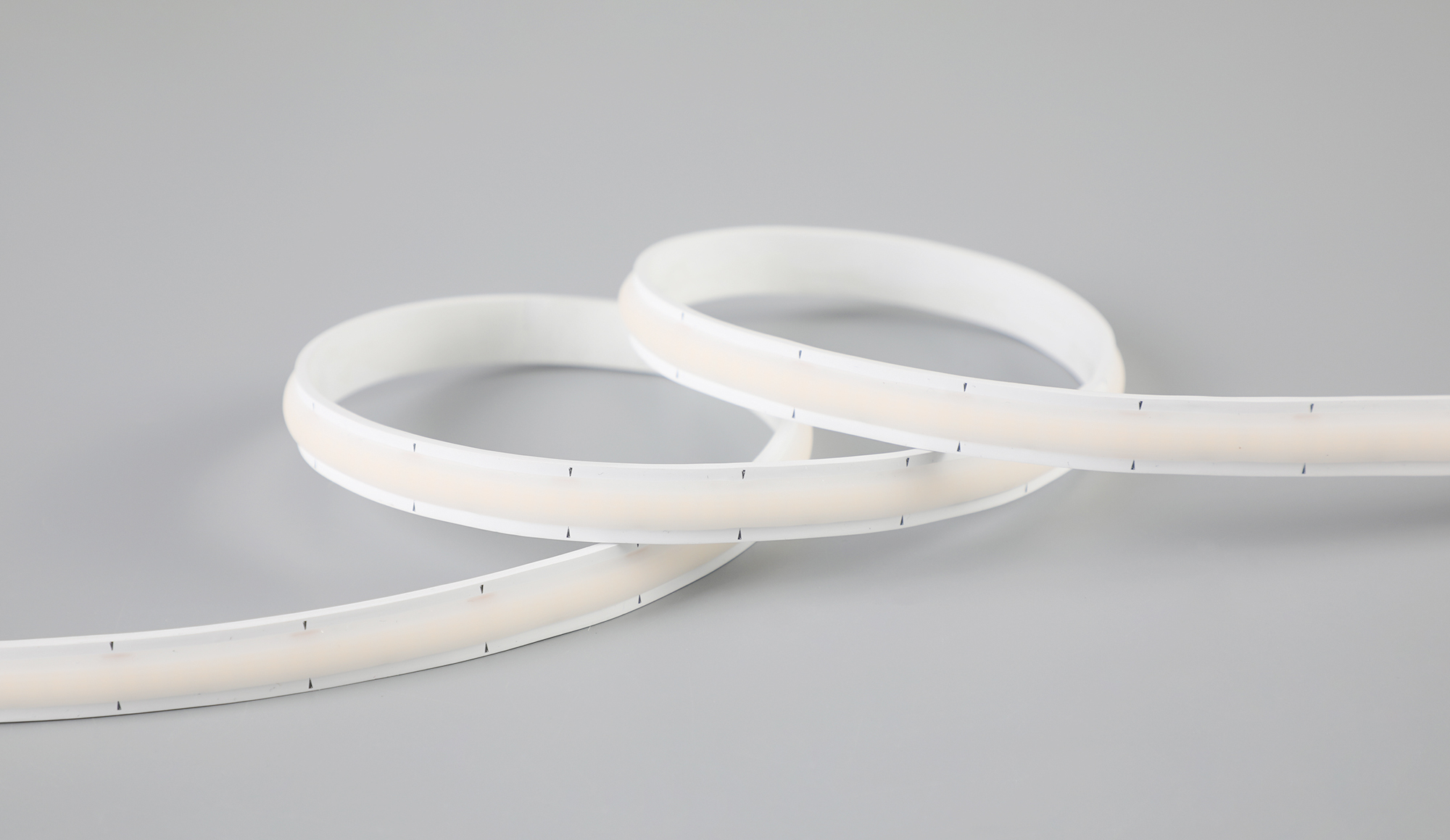

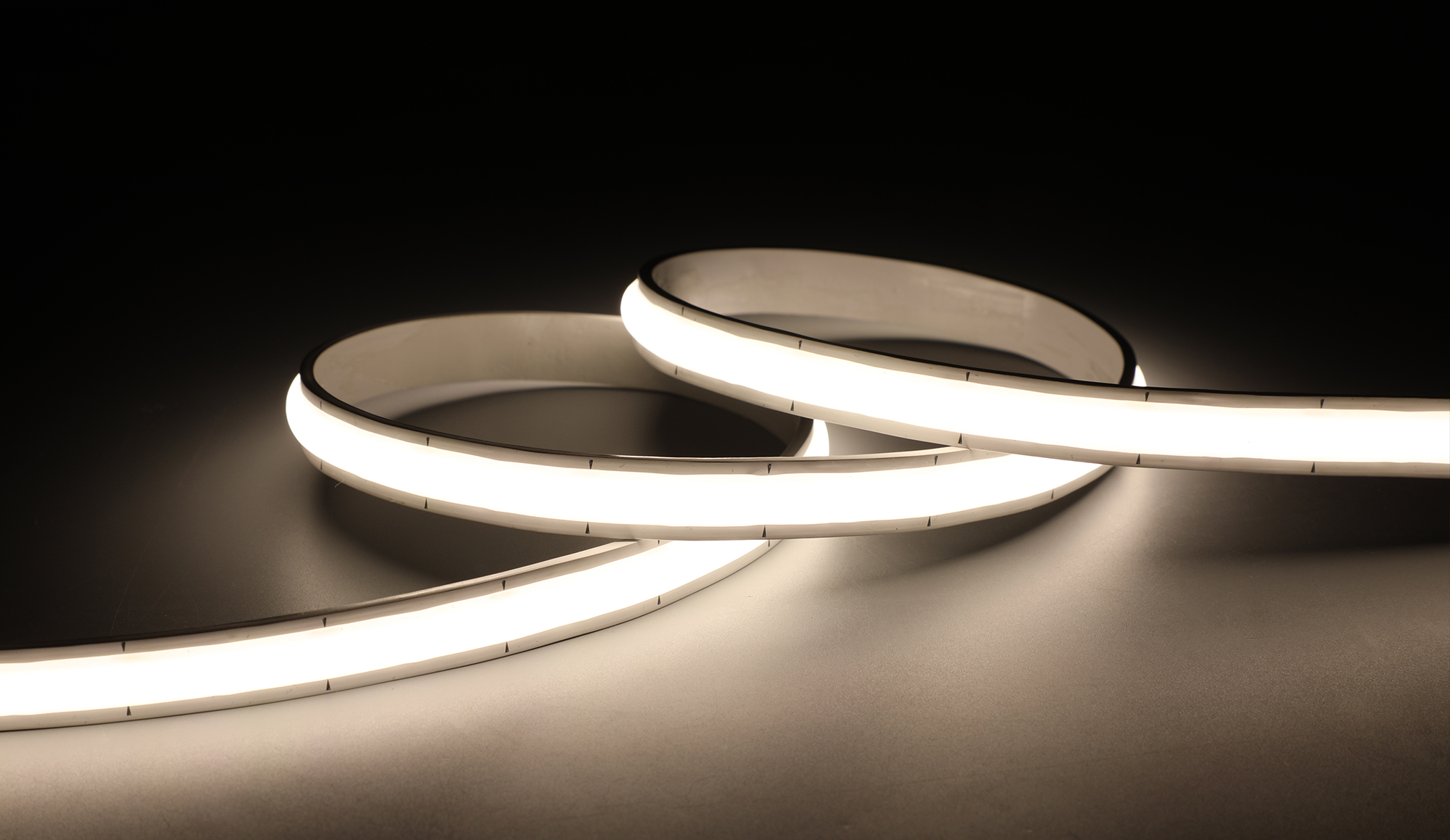

      Dot-Free Pure Flow Pro Series - White IP67 24V 12mm - NS-172

      Features
      -
      1. Upscale milky color with mate finishing self-cleaning coating and laser printing.
      2. Very flexible bend, ultra-thin appearance, and dot-free homogeneous lighting performance.
      3. High light efficiency output using premium diffused material.
      4. Reliable quality assurance using a mature light source in SMD LED.
      5. Flexible parameters customization on CCT, CRI, color, power, brightness, etc.
      6. Good structural and mechanical properties during usage and manufacturing.
      7. High production efficiency by adopting silicone extrusion processing technology.
      8. Convenient to use with a variety of installation accessories.
      9. Long packing length available up to 50M[164ft.] per spool.
      10. Higher waterproof grade in IP67 for indoor and outdoor usage.
      11. 50,000h lifespan and 5 years warranty with CE&UL approval.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness
      @CRI80&4000K

      Light Efficiency

      @CRI80&4000K

      Brightness
      @CRI90&4000K

      Light Efficiency

      @CRI90&4000K

      Beam

      Angle

      		 IP Rating
      NS-172
      (GL-H2835XX-24-CV-304-2720X)      		 L5000*W12*H4.5mm
      [L197*W0.47*H0.18in.]

      26.3mm
      [1.04in.]

      SMD

      2835

      304LED/M
      [92LED/ft.]

      24VDC

      14W/M
      [4.3W/ft.]

      2700K±120K
      3000K±150K
      3500K±300K
      4000K±300K
      5000K±400K
      6500K±500K
      (3 step
      SDCM in 1 bin)

      2140lm/M
      [652lm/ft.]

      153lm/W

      1820lm/M
      [555lm/ft.]

      130lm/W

      		 150°
      (perpendicular
      to the
      LED strip)
      &
      110°
      (parallel
      to the
      LED strip)

      IP67

      [Wet]
      19W/M
      [5.8W/ft.]      		 2910lm/M
      [887lm/ft.]      		 153lm/W 2470lm/M
      [753lm/ft.]      		 130lm/W
      Download
      -

      • Datasheet - Dot-Free Pure Flow Pro Series - High-Power High-Efficacy IP67 - NS-172

      • Spectrum Report - Dot-Free Pure Flow Series - High-Power High-Efficacy IP67 Pro - NS-172

      • IES Report - Dot-Free Pure Flow Series - High-Power High-Efficacy IP67 Pro - NS-172

      Details
      -





      Application

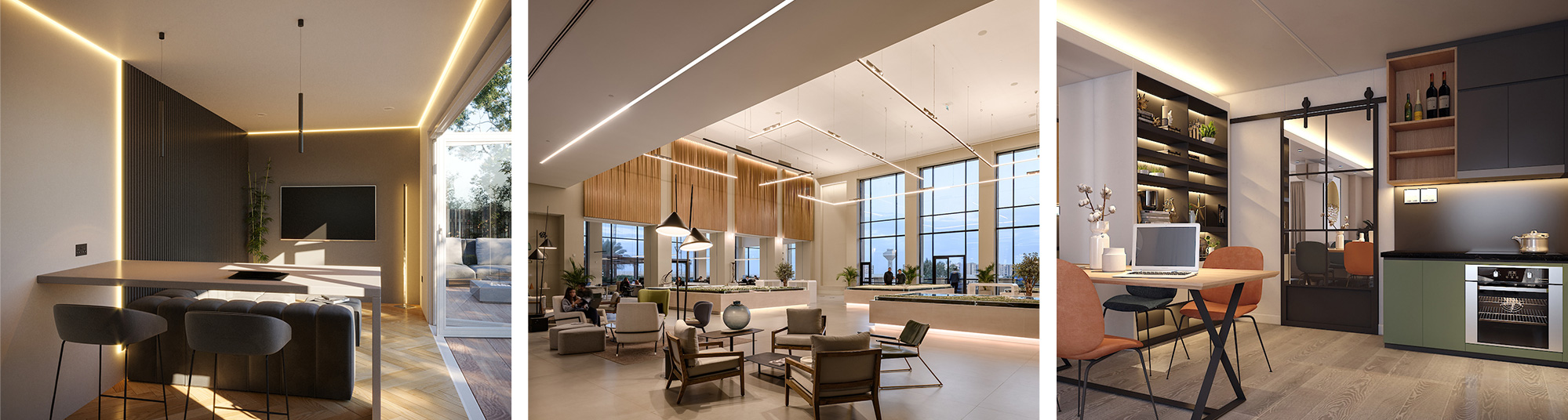

      Ideal for high-end linear lighting application in residential, retail,hospitality and landscape.
