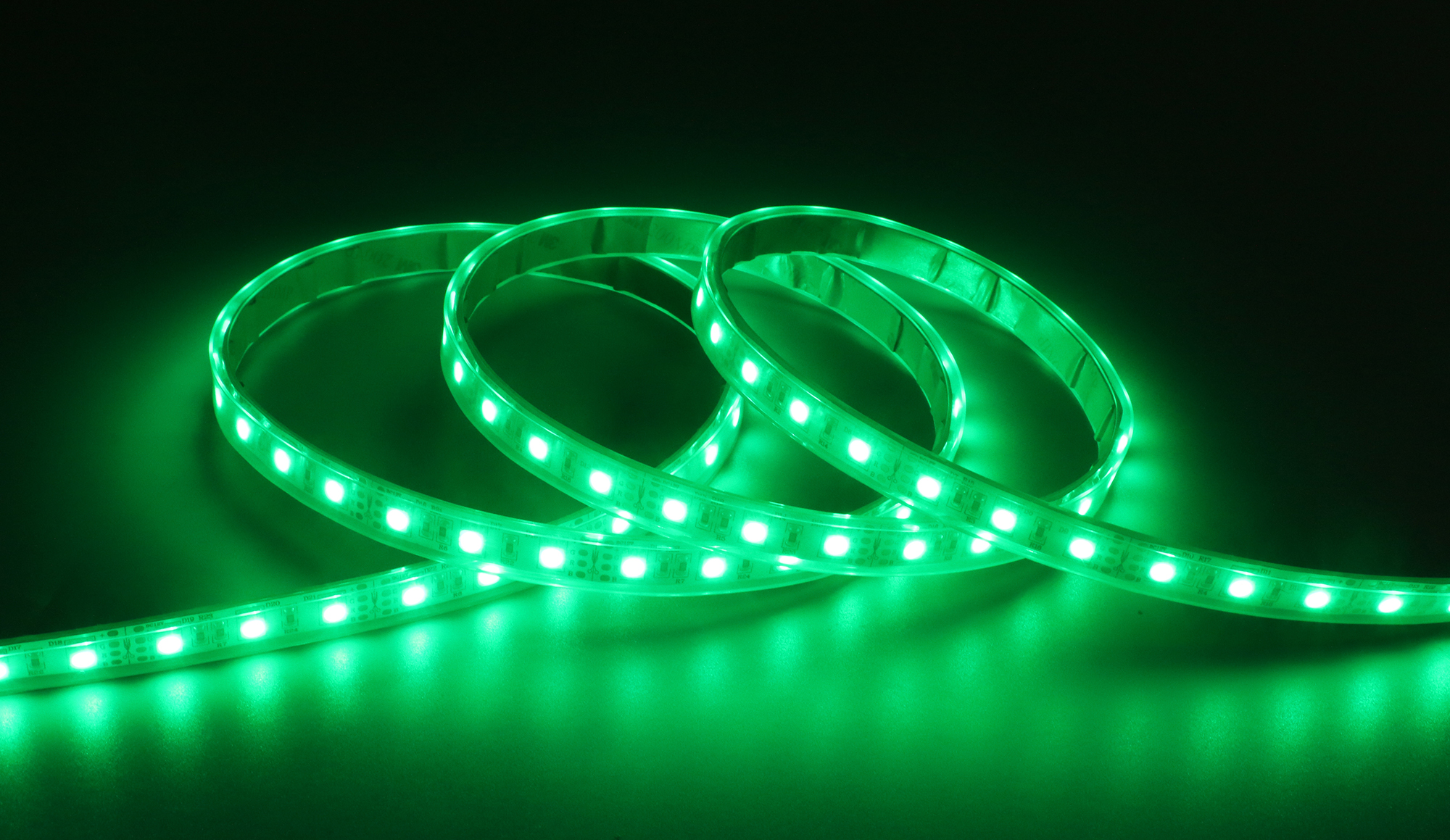

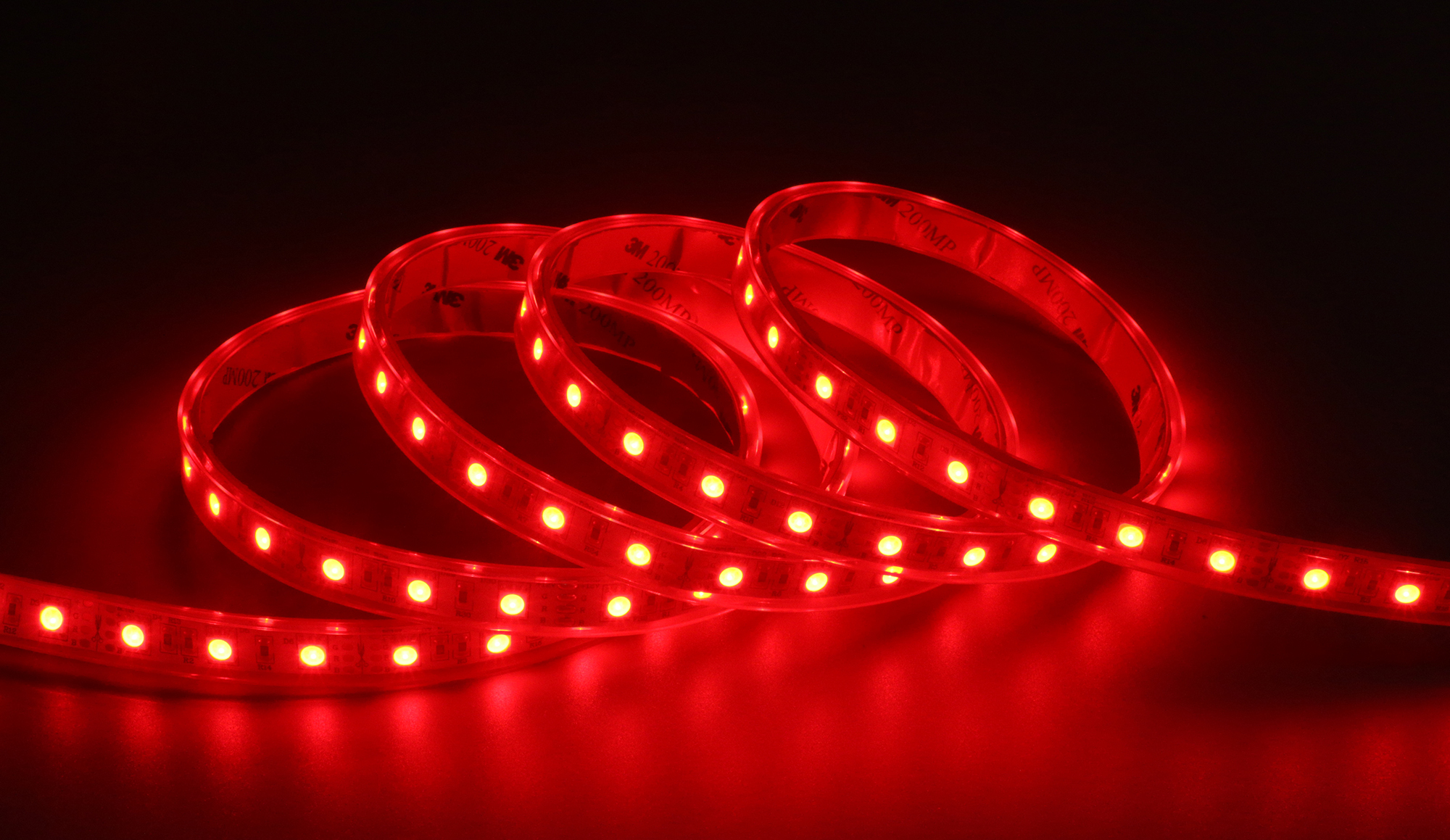

      RGB Mixes-Light Series - RGB 12V 60LED/M 10mm - F32

      Features
      -
      1. RGB Mixes-Light Series with 3in1 5050 package, is popular usage in the market.
      2. Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness

      Light
      Efficiency

      Beam

      Angle

      		 IP Rating
      GL-X5050XX-12-CV-060-F32 L5000*W10*H2mm
      [L197*W0.4*H0.08in.]

      50mm

      [1.97in.]

      SMD5050

      RGB

      60LED/M

      [18LED/ft.]

      12VDC

      13W/M

      [3.96W/ft.]

      R:625~630nm

      G:520~530nm

      B:460~470nm

      520lm/M
      [159lm/ft.]

      40lm/W

      		 120°

      IP20/

      IP54/

      IP65/

      IP67/

      IP68/

      IP67 Plus

      [Dry/Damp/Wet]
      Download
      -

      • Datasheet - RGB MIXES-LIGHT SERIES - RGB 60LED/M - F32

      • Spectrum Report - RGB Mixes-Light Series - RGB 60LED/M - F32

      • IES Report - RGB Mixes-Light Series - RGB 60LED/M - F32

      Details
      -









      Application

      Iindirect decorative lighting for table, showcase, shelf, cabinet, corridor, stair, cove, ceiling etc.
