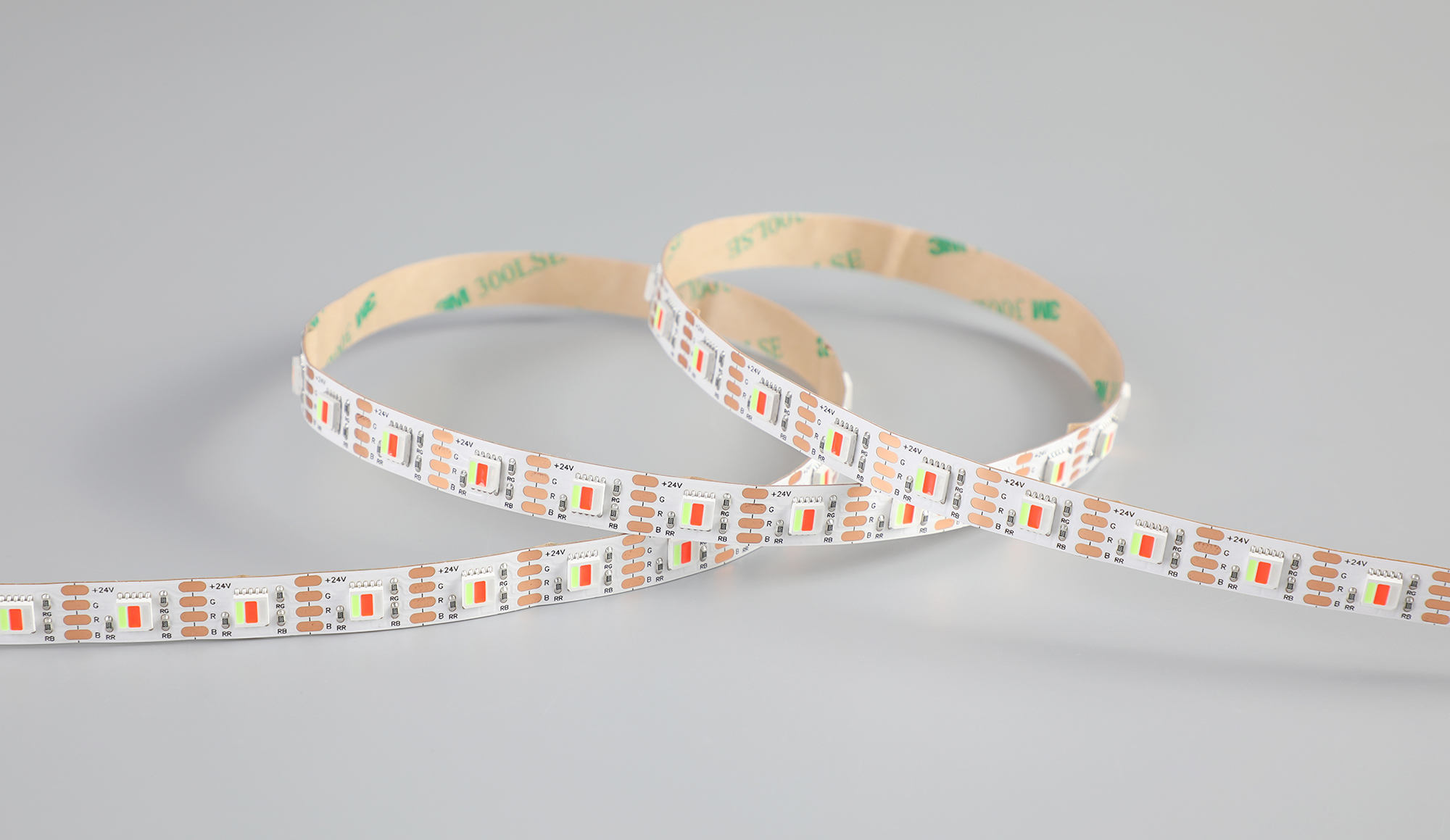

      RGB Mixes-Light Series - RGB 1-LED Cuttable 24V 60LED/M 10mm - 9326

      Features
      -
      1. Short-cutting of one LED cuttable design, with small increment in 16.7mm[0.66in.]
      2. 10mm[0.4in.] PCB width fits the most general aluminum profile kit.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness
      @Mix

      Brightness

      @Red

      		 Brightness
      @Green      		 Brightness
      @Blue

      Beam

      Angle

      		 IP Rating
      GL-N5050XX-24-CV-060-9326 L5000*W10*H2mm
      [L197*W0.4*H0.08in.]

      16.7mm

      [0.66in.]

      SMD5050

      3in1

      60LEDs/M

      [18LEDs/ft.]

      24VDC

      15W/M

      [4.6W/ft.]

      R:620~630nm

      G:520~530nm

      B:450~460nm

      700lm/M
      [213lm/ft.]

      50lm/M
      [15lm/ft.]

      		 590lm/M
      [180lm/ft.]      		 70lm/M
      [21lm/ft.]      		 120°

      IP20/

      IP65/

      [Dry/Wet]
      Download
      -

      • Datasheet - RGB MIXES-LIGHT SERIES -RGB SHORT-CUT - 9326

      • Spectrum Report - RGB Mixes-Light Series - RGB Short-Cut - 9326

      • IES Report - RGB Mixes-Light Series - RGB Short-Cut - 9326

      Details
      -









      Application

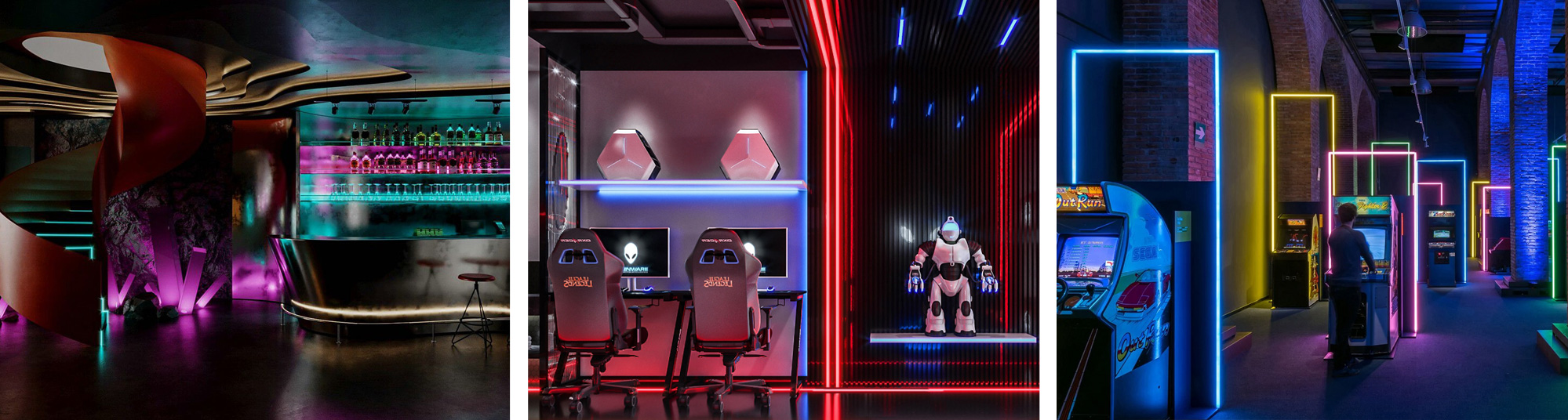

      Iindirect decorative lighting for table, showcase, shelf, cabinet, corridor, stair, cove, ceiling etc.
