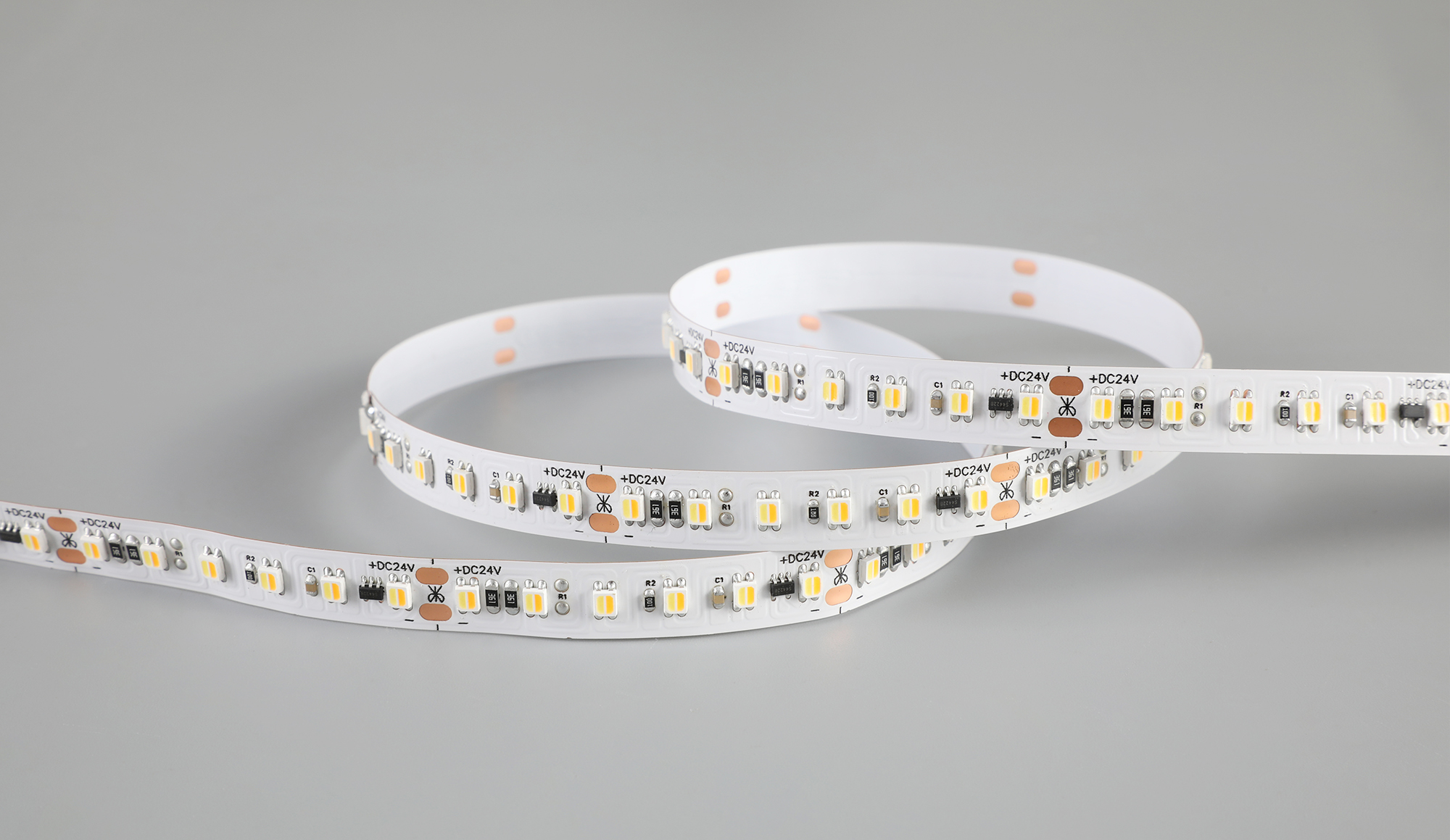

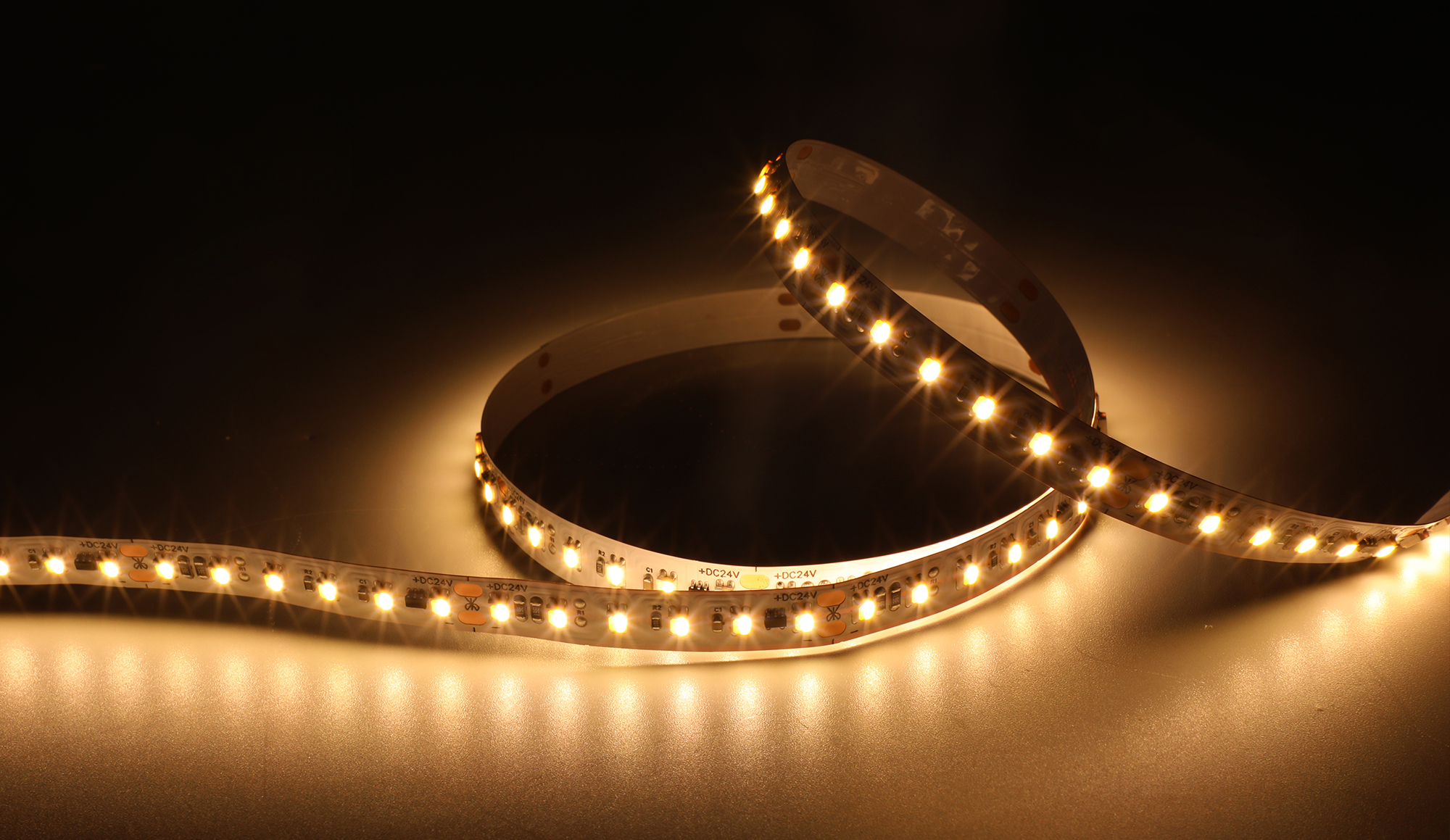

      CCT-Tunable Series - ON&OFF Switch 2in1 24V 120LED/M 10mm - 9021

      Features
      -
      1. CCT-tunable available generating different CCT for the creation of several light environment.
      2. Stepping CCT-Tunable within 3 CCTs, controlled by normal On/Off switch.
      3. No remote control and receiver required, easy to use and simple to wiring.
      4. Flexible choice on parameter combination with seperated LED package configuration.
      5. Dot-free linear performance when it's installed in aluminum channel with high density design adpoting 2in1 LED.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength

      Brightness@CRI80&

      2700K+6500K

      Light Efficiency

      @CRI80&

      2700K+6500K

      Brightness@CRI90&

      2700K+6500K

      Light Efficiency

      @CRI90&

      2700K+6500K

      Beam

      Angle

      		 IP Rating

      GL-N3528XX-

      24-CV-120-9021

      		 L5000*W10*H1.5mm
      [L197*W0.4*H0.06in]

      100mm

      [3.94in.]

      SMD3528

      120LED/M

      [36LED/ft.]

      24VDC

      19.2W/M

      [5.85W/ft.]

      WW: 2700K

      CW: 6500K
      NW: 4000K

      (3 step

      CCT-Tunable)

      750lm/M [230lm/ft.] (WW)
      790lm/M [240lm/ft.]

      (CW)
      1540lm/M [470lm/ft.] (NW)

      78lm/W

      (WW)
      82lm/W

      (CW)
      80lm/W

      (NW)

      630lm/M [190lm/ft.] (WW)
      670lm/M [200lm/ft.]

      (CW)
      1300lm/M [390lm/ft.] (NW)

      66lm/W

      (WW)
      70lm/W

      (CW)
      68lm/W

      (NW)

      		 120°

      IP20/

      IP54/

      IP54 Plus/

      IP65/

      IP67/

      IP67 Plus/

      IP68
      [Dry/Damp/Wet
      Download
      -

      • Datasheet - CCT-TUNABLE SERIES - ON&OFF SWITCH - 9021

      • Spectrum Report - CCT-Tunable Series - ON&OFF Switch - 9021

      • IES Report - CCT-Tunable Series - ON&OFF Switch - 9021

      Details
      -





      Application

      lindirect decorative lighting for table, showcase, shelf, cabinet, comidor,stair, cove, ceiling etc.
