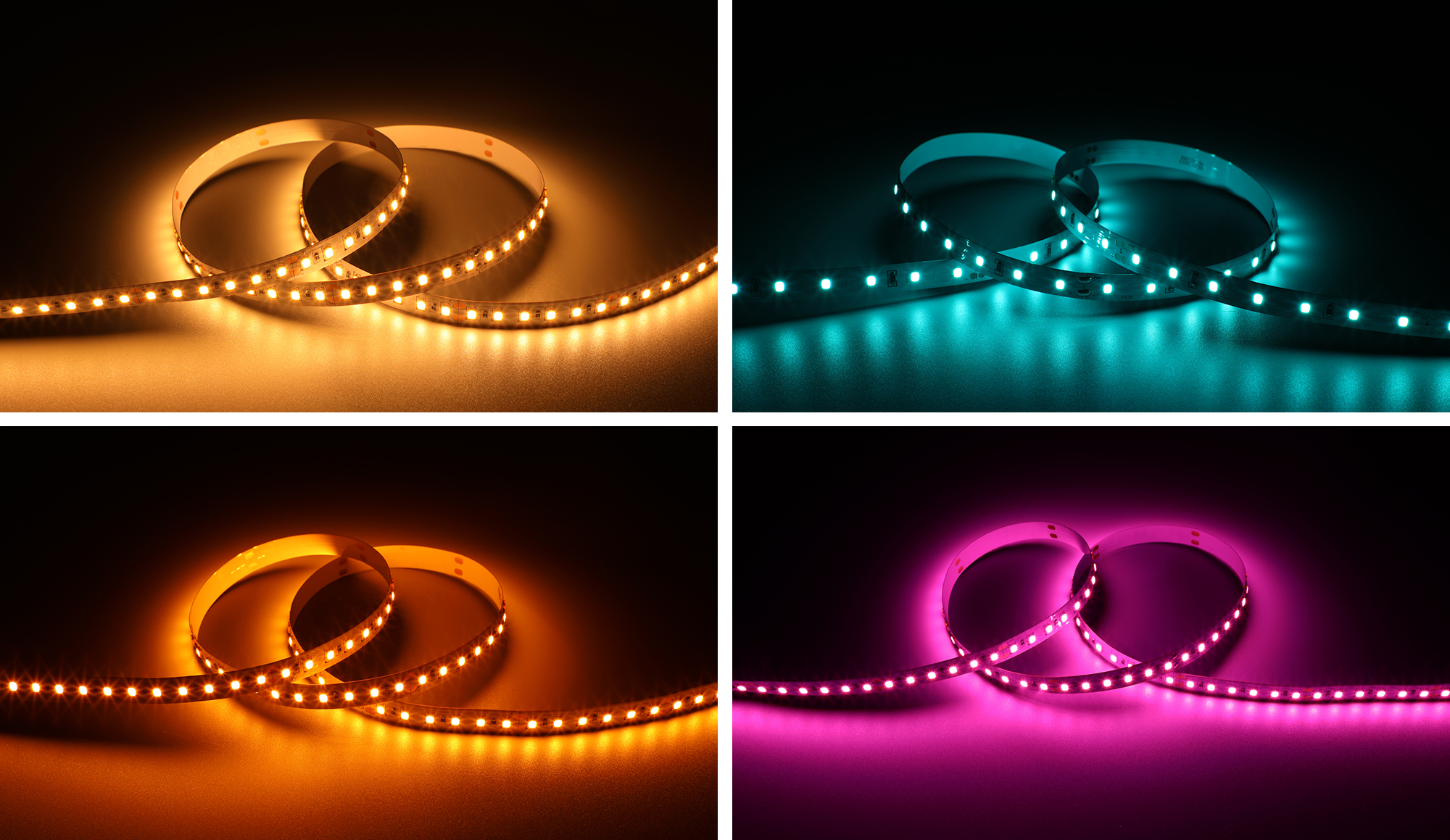

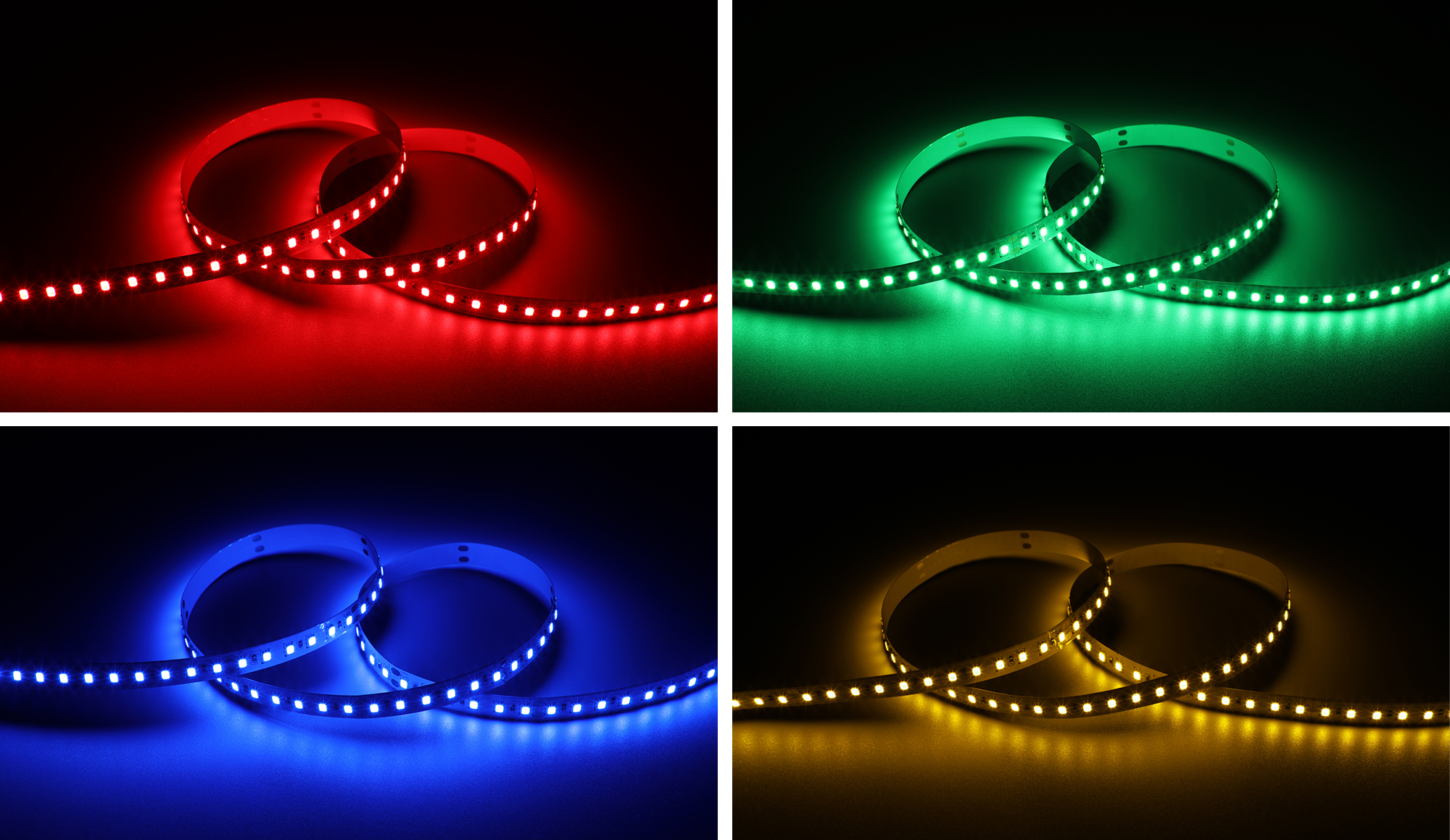

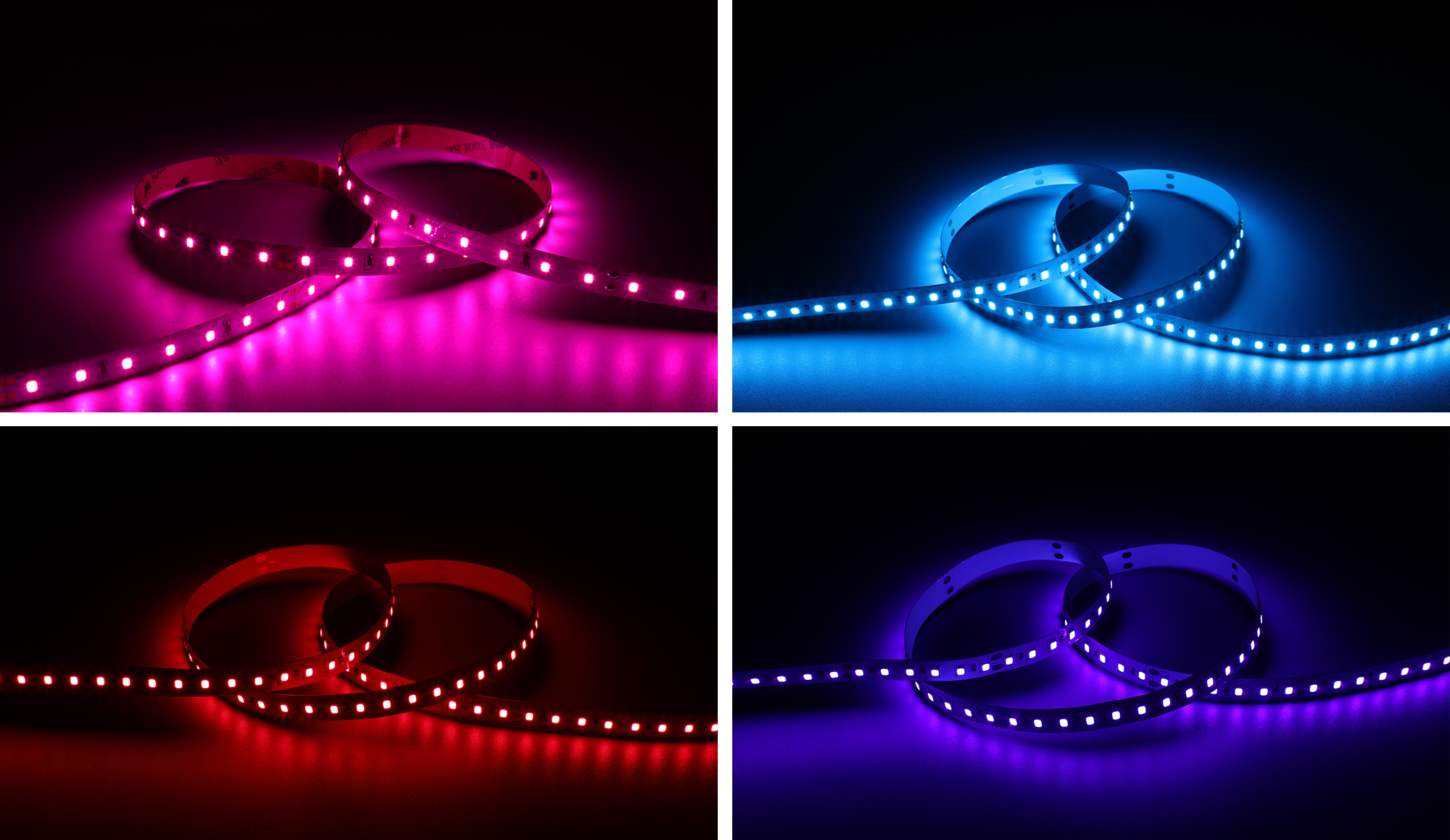

1. Colorful-Light available in Red, Green, Blue, Yellow, Orange, Purple, Pink, Hyper Red, Emerald(Light Green), Cyan(Ice Blue), Amber, Golden, Tiffany Blue and Magenta color.
2. Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.

Parameters
-

Part No.	Dimension	Increment	LED Type	LED Qty	Voltage	Power	CCT / Wavelength	Brightness @IP20	Beam Angle	IP Rating
GL-X2835XX- 24-CV-060-F156	L5000W10H1mm [L197W0.4H0.04in]	100mm [3.94in.]	SMD2835	60LED/M [18LED/ft.]	24VDC	6W/M [1.83W/ft.]	Red: 615-625nm, Green: 515-525nm, Blue: 460-470nm, Yellow: 585-595nm, Orange: 600-610nm, Purple: 395-405nm, Pink: \ , Hyper Red: 640-650nm, Emerald(Light Green): 525-545nm, Cyan(Ice Blue): 465-485nm, Amber: 1600K, Golden: 2200K, Tiffany Blue: \, Magenta: \	Red: 150lm/M [46lm/ft.] Green: 402lm/M [123lm/ft.] Blue: 96lm/M [29lm/ft.] Yellow: 174lm/M [53lm/ft.] Orange: 180lm/M [55lm/ft.] Purple: 5lm/M [1.5lm/ft.] Pink: 330lm/M [101lm/ft.] Hyper Red: 30lm/M [9lm/ft.] Emerald(Light Green): 810lm/M [247lm/ft.] Cyan(Ice Blue): 336lm/M [102lm/ft.] Amber: 342lm/M [104lm/ft.] Golden: 522lm/M [159lm/ft.] Tiffany Blue: 390lm/M [119lm/ft.] Magenta: 138lm/M [42lm/ft.]	120°	IP20/ IP54/ IP54 Plus/ IP54 Thin/ IP65/ IP67/ IP67 Plus/ IP67 Thin/ IP68 [Dry/Damp/Wet]

Part No.

Dimension

Increment

LED Type

LED Qty

Voltage

Power

CCT /
Wavelength

Brightness
@IP20

Beam

Angle

IP Rating

GL-X2835XX-

24-CV-060-F156

L5000*W10*H1mm
[L197*W0.4*H0.04in]

100mm

[3.94in.]

SMD2835

60LED/M

[18LED/ft.]

24VDC

6W/M

[1.83W/ft.]

Red: 615-625nm,

Green: 515-525nm,

Blue: 460-470nm,

Yellow: 585-595nm,

Orange: 600-610nm,

Purple: 395-405nm,

Pink: \ ,

Hyper Red: 640-650nm,

Emerald(Light Green): 525-545nm,

Cyan(Ice Blue): 465-485nm,

Amber: 1600K,

Golden: 2200K,

Tiffany Blue: \,

Magenta: \

Red: 150lm/M [46lm/ft.]

Green: 402lm/M [123lm/ft.]

Blue: 96lm/M [29lm/ft.]

Yellow: 174lm/M [53lm/ft.]

Orange: 180lm/M [55lm/ft.]

Purple: 5lm/M [1.5lm/ft.]

Pink: 330lm/M [101lm/ft.]

Hyper Red: 30lm/M [9lm/ft.]

Emerald(Light Green): 810lm/M [247lm/ft.]

Cyan(Ice Blue): 336lm/M [102lm/ft.]

Amber: 342lm/M [104lm/ft.]

Golden: 522lm/M [159lm/ft.]

Tiffany Blue: 390lm/M [119lm/ft.]

Magenta: 138lm/M [42lm/ft.]

120°

IP20/

IP54/

IP54 Plus/

IP54 Thin/

IP65/

IP67/

IP67 Plus/

IP67 Thin/

IP68
[Dry/Damp/Wet]

* In addition to tiffany blue and magenta, other colors can also be customized. Tiffany blue is the exclusive brand color belong to TIFFANY & CO., please be sure to obtain formal authorization from TIFFANY & CO. before usage. Otherwise, there is a possibility of bearing legal responsibility.
