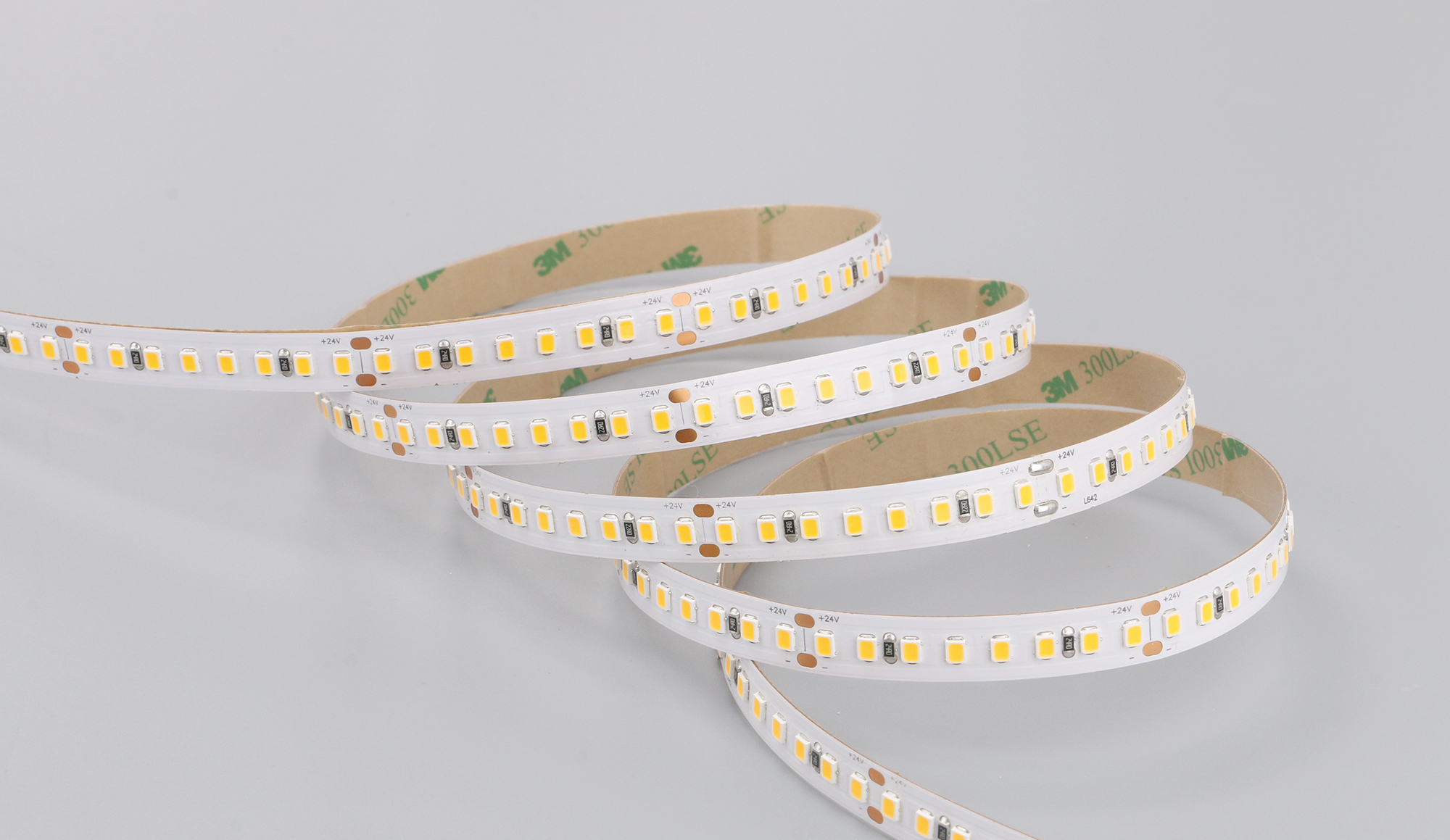

      High-Efficacy Classical ErP Series - 180lm/W 24V 160LED/M 10mm - L642

      Features
      -
      1. High-Efficacy Series with 8 LEDs per section, create high brightness output under same power consumption as luminary light engine.
      2. Premium ErP version with high energy efficiency class, which can replace the non-ErP or low-efficacy ErP version with classica power and LED density.
      3. ldeal for indirect lighting applying at architectural contour, corridor, stair ceiling,cove, handrail,skirting, barrier, garden, bridge, lift etc.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness
      @4000K&CRI80

      Light Efficiency

      @4000K&CRI80

      		 Brightness
      @4000K&CRI90

      Light Efficiency

      @4000K&CRI90

      Beam

      Angle

      		 IP Rating
      GL-N2835XX-24-CV-160-L642 5000*10*1mm
      [197*0.4*0.04in.]

      50mm

      [1.97in.]

      SMD2835

      160LED/M
      [49LED/ft.]

      24VDC

      9.6W/M

      [2.93W/ft.]

      		 2700K
      3000K
      3500K
      4000K
      5000K
      6500K      		 1580lm/M
      [482lm/ft.]      		 165m/W 1340lm/M
      [408lm/ft.]      		 140lm/W 120°

      IP20/

      IP54/

      IP54 Plus/

      IP65/

      IP67/

      IP67 Plus/

      IP68
      [Dry/Damp/Wet]
      1730lm/M
      [527lm/ft.]       		 180lm/W 1470lm/M
      [448lm/ft.]      		 153lm/W
      Download
      -

      • Datasheet - HIGH-EFFICACY CLASSICAL ERP SERIES - L642

      Details
      -





      Application

      Accent and wall grazing lighitng for showcase, shelf, cabinet, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
