      Sign Backlight Series - Module-Bend White 24V 60LED/M 8mm - FE76

      Features
      -
      1. Sign Backlight Series in Module-Bend appearance, allows flexible angle bending for backlight apply such as advertising word, signboard light box or abnormity mount scene.
      2. Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength

      Brightness

      @CRI80&4000K

      Light Efficiency

      @CRI80&4000K

      Brightness

      @CRI90&4000K

      Light Efficiency

      @CRI90&4000K

      Beam

      Angle

      		 IP Rating

      GL-N2835XX-

      24-CV-060-FE76

      		 L5000*W8*H1mm
      [L197*W0.32*H0.04in]

      100mm
      [3.94in]

      SMD

      2835

      60LED/M

      [18LED/ft.]

      24VDC

      7.2W/M

      [2.2W/ft.]

      W:2700K&3000K&

      3500K&4000K&

      5000K&6500K,
      R:625~630nm,

      G:520~525nm,

      B:460~470nm,
      Y: yellow 585~595nm,

      PI:pink,

      AM:amber 1600K

      720lm/M
      [220lm/ft.]

      		 100lm/W 610lm/M
      [186lm/ft.]      		 85lm/W 120°

      IP20
      [Dry]
      Download
      -

      • Datasheet - SIGN BACKLIGHT SERIES - MODULE-BEND - FE76

      • Spectrum Report - Sign Backlight Series - Module-Bend - FE76

      Details
      -





      Application

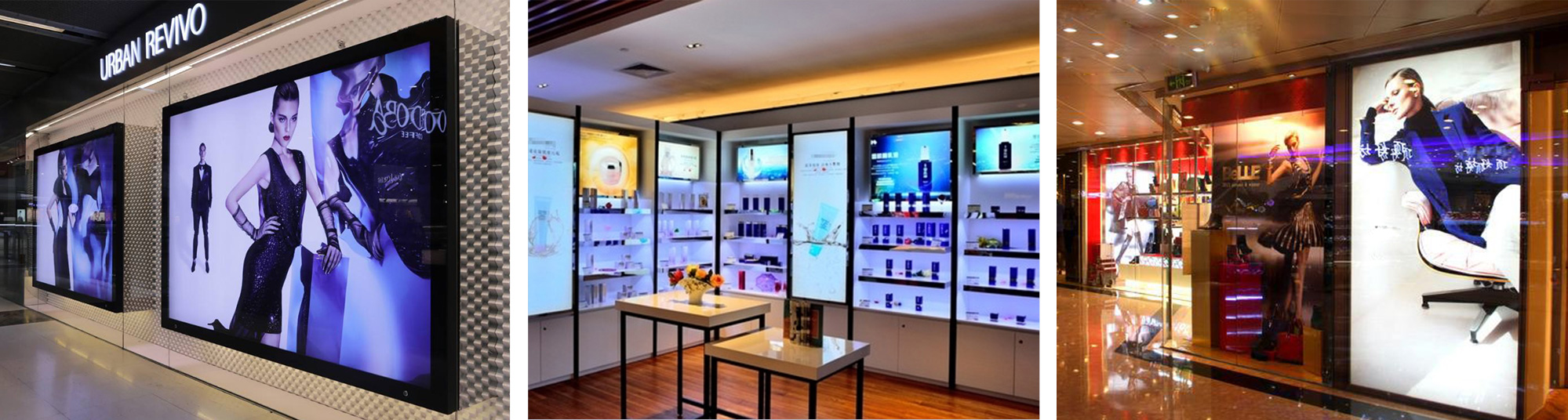

      Ideal for backlight of showcase, billboard and signage light box in small  size and thin width, also used for photographic light.
