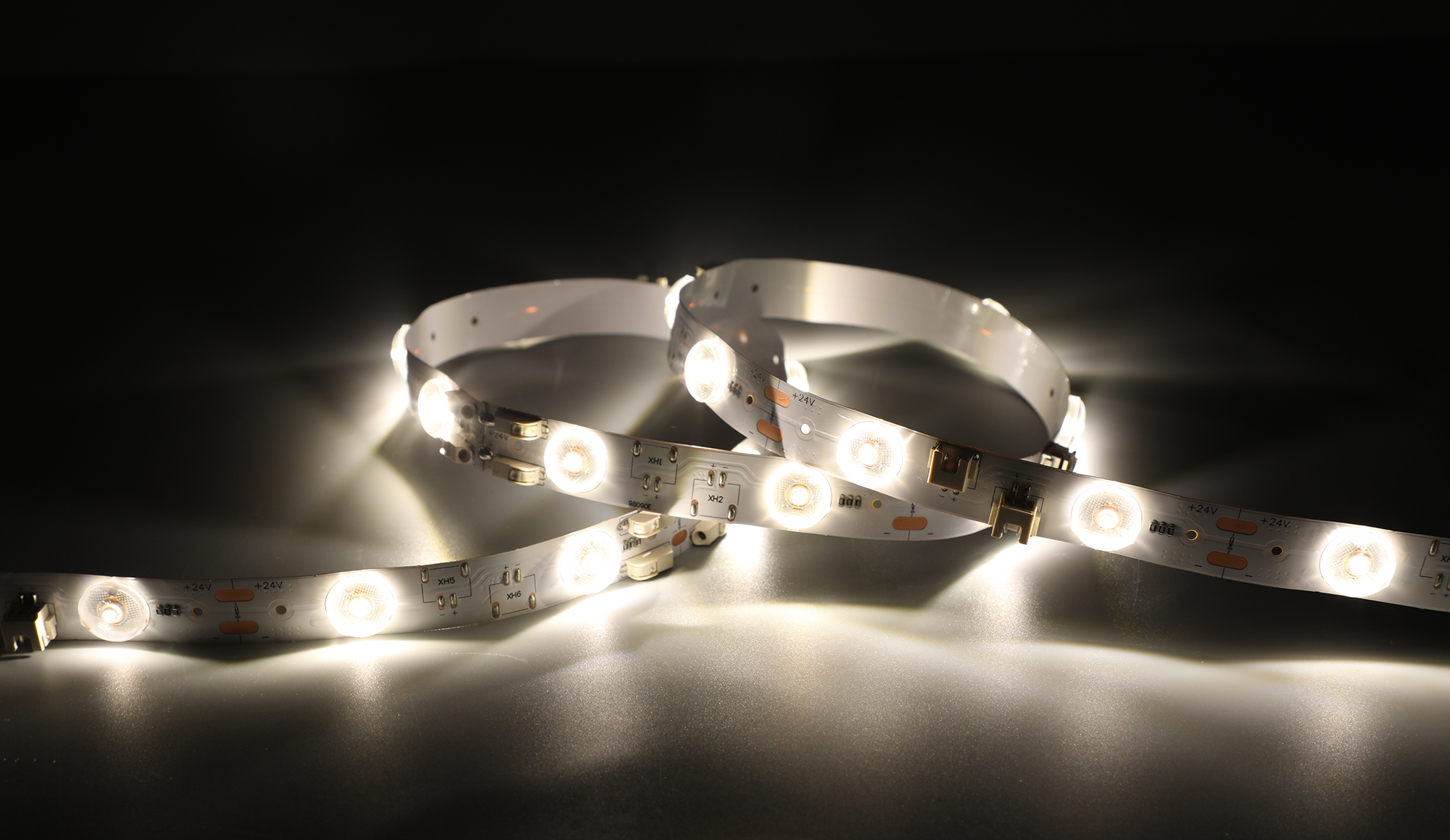

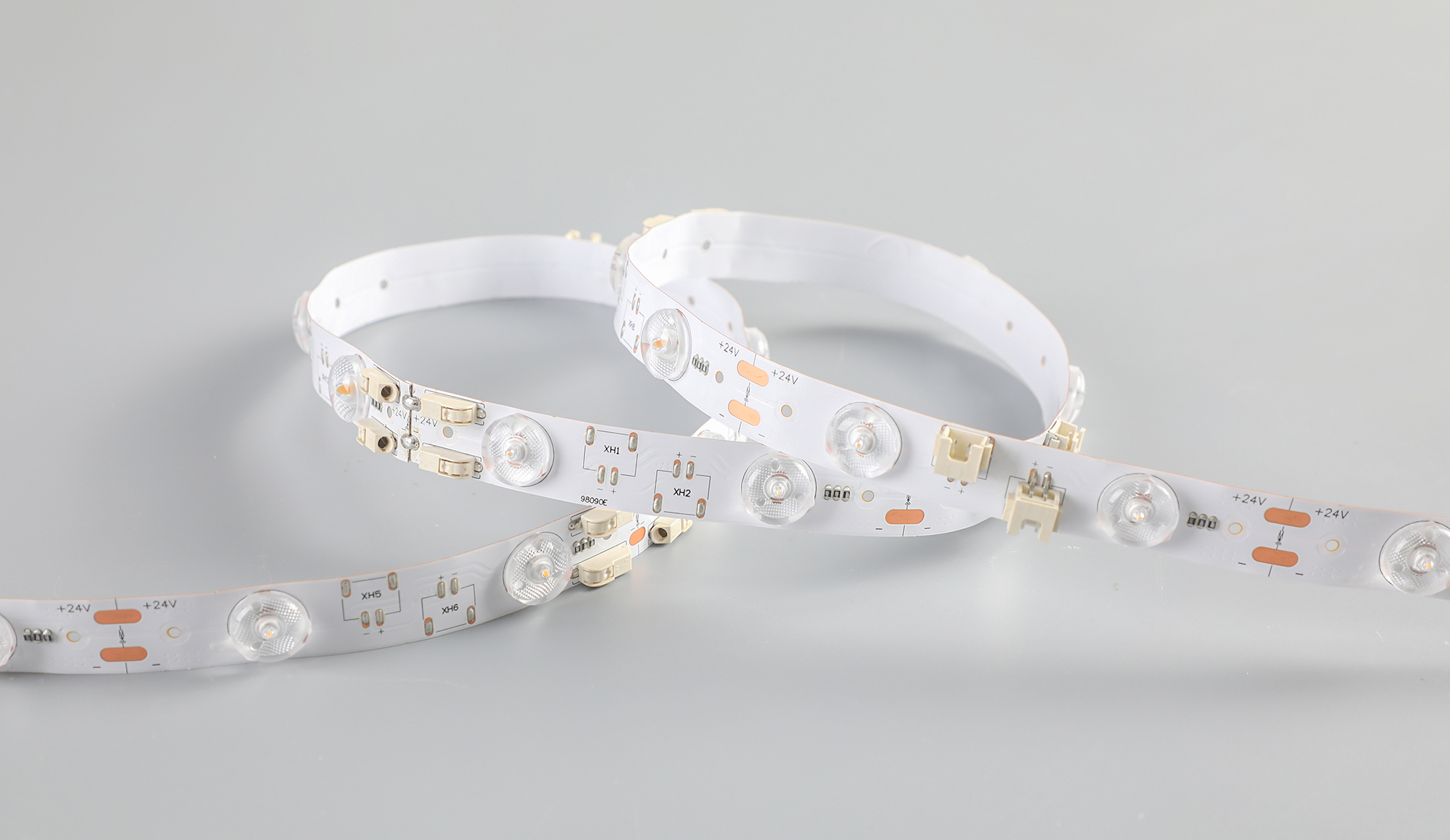

      Sign Backlight Series - Spliceable Grid White 24V 20LED/M 16mm - 9809

      Features
      -
      1. On-site cutting and split joint to be different sizes of grids, by on-board welding-free Wago and XH connectors.
      2. Fix by adhesive tape, or by staple gun, nails, or screws, through the reserved positioning holes on each cutting section.
      3. Adopting 180° beam angle of the lens, available to get better uniformity with less LED quantity and lower thickness for a light box.
      4. The cost-effective lighting solutions for the plane or curvy space-sensitive backlighting.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength

      Brightness

      @CRI80&4000K

      Light Efficiency

      @CRI80&4000K

      Brightness

      @CRI90&4000K

      Light Efficiency

      @CRI90&4000K

      Beam

      Angle

      		 IP Rating

      GL-X2835XX-

      24-CV-020-9809

      		 L4800*W16*H6.5mm
      [L189*W0.63*H0.26in]

      100mm
      [3.94in]

      SMD

      2835

      20LED/M

      [6LED/ft.]

      24VDC

      9.6W/M

      [2.93W/ft.]

      2700K
      3000K
      3500K
      4000K
      5000K
      6500K

      1132lm/M
      [345lm/ft.]

      		 118lm/M 960lm/M
      [293lm/ft.]      		 100lm/M

      180°

      With lens

      IP20
      [Dry]
      Download
      -

      • Datasheet - Sign Backlight Series - Spliceable Grid 180° White - 9809

      • Spectrum Report - Sign Backlight Series - Spliceable Grid 180° White - 9809

      • IES Report - Sign Backlight Series - Spliceable Grid 180° White - 9809

      Details
      -





      Application:

      1. Exclusive for the backlight of showcase, billboard, and signage light box in small size and thin width.
