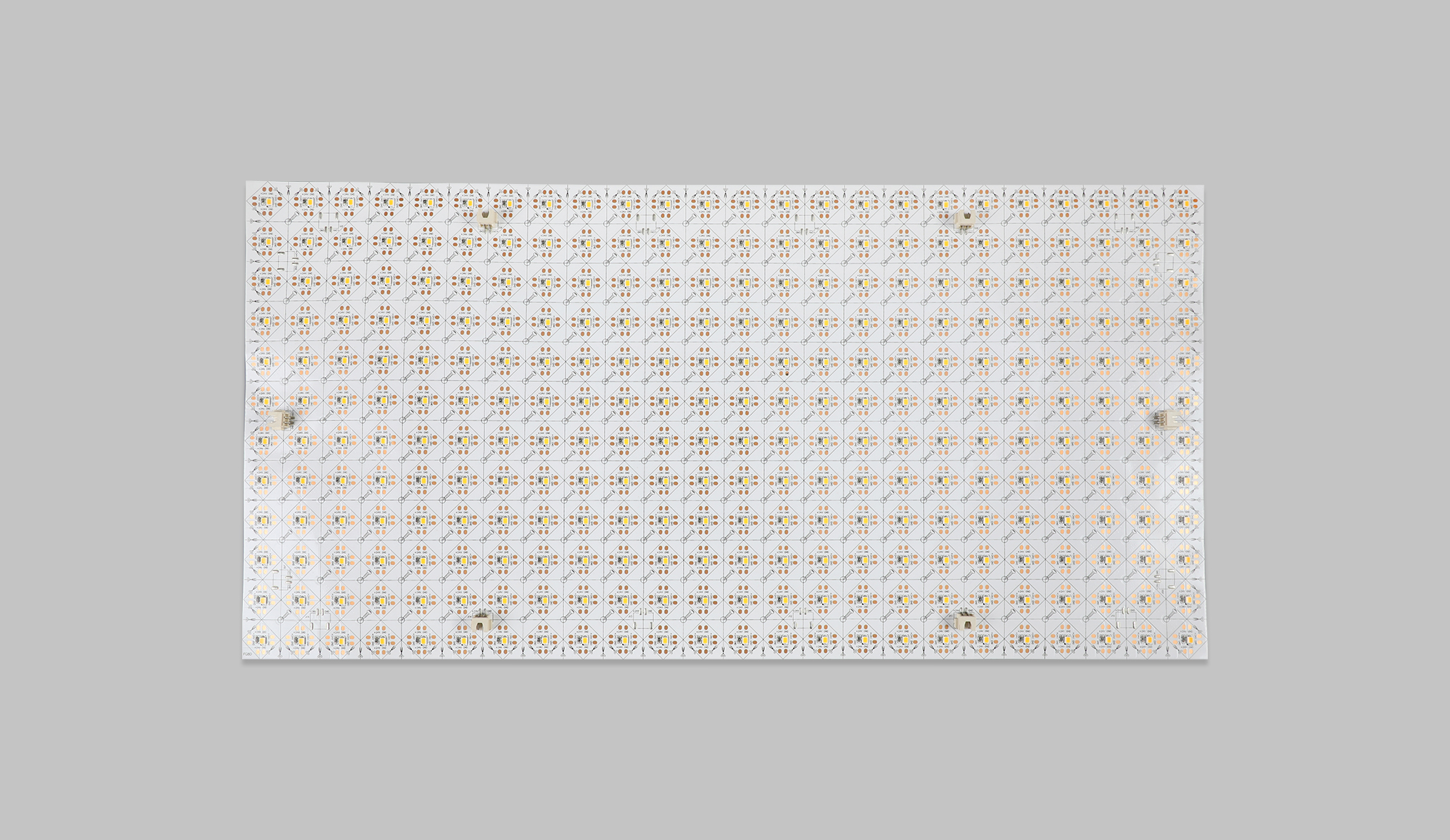

      Sign Backlight Series - Light Sheet 1-LED Cuttable White 24V - FE71/FG80

      Features
      -

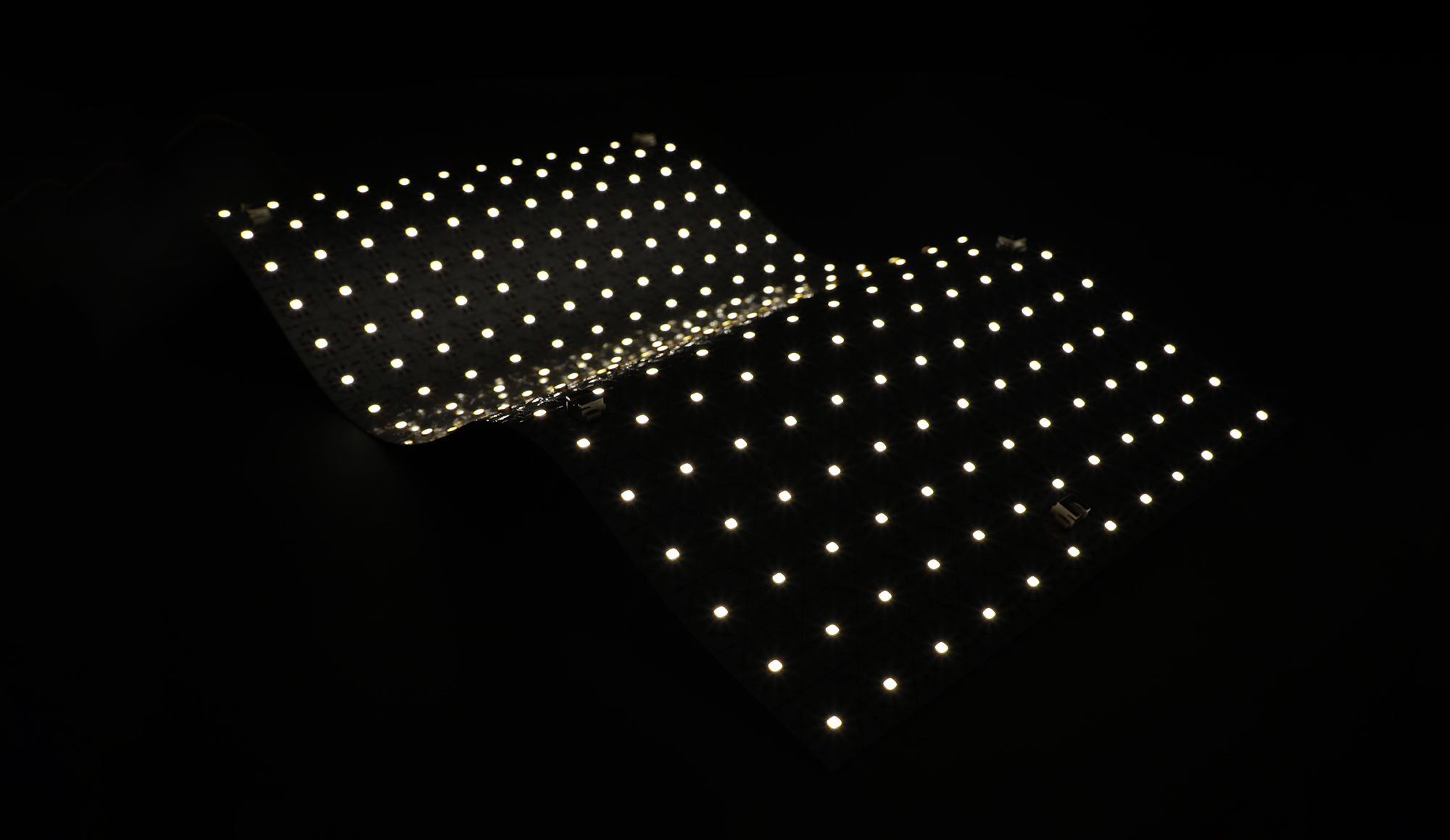

      1. Sign Backlight Series in light sheet appearance, allows flexible cutting (by 1 LED) and on-site board-to-board/board-to-power, split joint (by cable soldering) into multiple shapes, such as linear, square, rectangle, donut, L, T, S, + etc., along with the solid and dotted line, applying at advertising word, signboard light box or abnormity mount scene.#
      2. For curvy, space-sensitive backlighting solutions requiring the thinnest of lighting solutions. Light sheet is great for backlighting projects where a lighting solution that is both thin and bendable may be needed to fit into soft, curving surfaces and spaces.
      3. Exclusive for backlight of showcase, billboard and signage light box in small size and thin width, also used for photographic light.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness
      @CRI80&4000K

      Light Efficiency

      @CRI80&4000K

      		 Brightness
      @CRI90&4000K

      Beam

      Angle

      		 IP Rating

      GL-N2835XX-

      24-CV-288-FE71/FG80

      		 L480*W240*H1mm
      [L19*W9.5*H0.04in]

      L20*W20mm
      [L0.8*W0.8in.]

      SMD

      2835

      288LED/Sheet

      24VDC

      10W

      W: 2700K&3000K&

      3500K&4000K&

      5000K&6500K,

      AM: amber 1600K
      R:625~630nm,

      G:520~525nm,

      B:460~470nm,

      Y: yellow 585~595nm,

      PI: pink

      1190lm/sheet,

      4lm/unit piece
      10340lm/m²

      [950lm/ft².]

      		 119lm/W

      1010lm/sheet,

      3.5lm/unit piece
      8790lm/m²

      [810lm/ft².]

      		 120°

      IP20/

      IP54 Thin
      [Dry/Damp]
      20W

      2230lm/sheet,

      8lm/unit piece
      20230lm/m²

      [1860lm/ft².]

      		 116lm/W

      1980lm/sheet,

      6.8lm/unit piece
      17190lm/m²

      [1590lm/ft².]
      30W

      3450lm/sheet,

      12lm/unit piece
      30340lm/m²

      [2760lm/ft².]

      		 115lm/W

      2940lm/sheet,

      10lm/unit piece
      25790lm/m²

      [2350lm/ft².]
      45W

      5060lm/sheet,

      18lm/unit piece
      44100lm/m²

      [4050lm/ft².]

      		 113lm/W

      4300lm/sheet,

      15lm/unit piece
      37490lm/m²

      [3440lm/ft².]
      Download
      -

      • Datasheet - SIGN BACKLIGHT SERIES - SHEET W - FE71/FG80

      • Spectrum Report - Sign Backlight Series - Sheet W - FE71/FG80

      Details
      -





      Application:

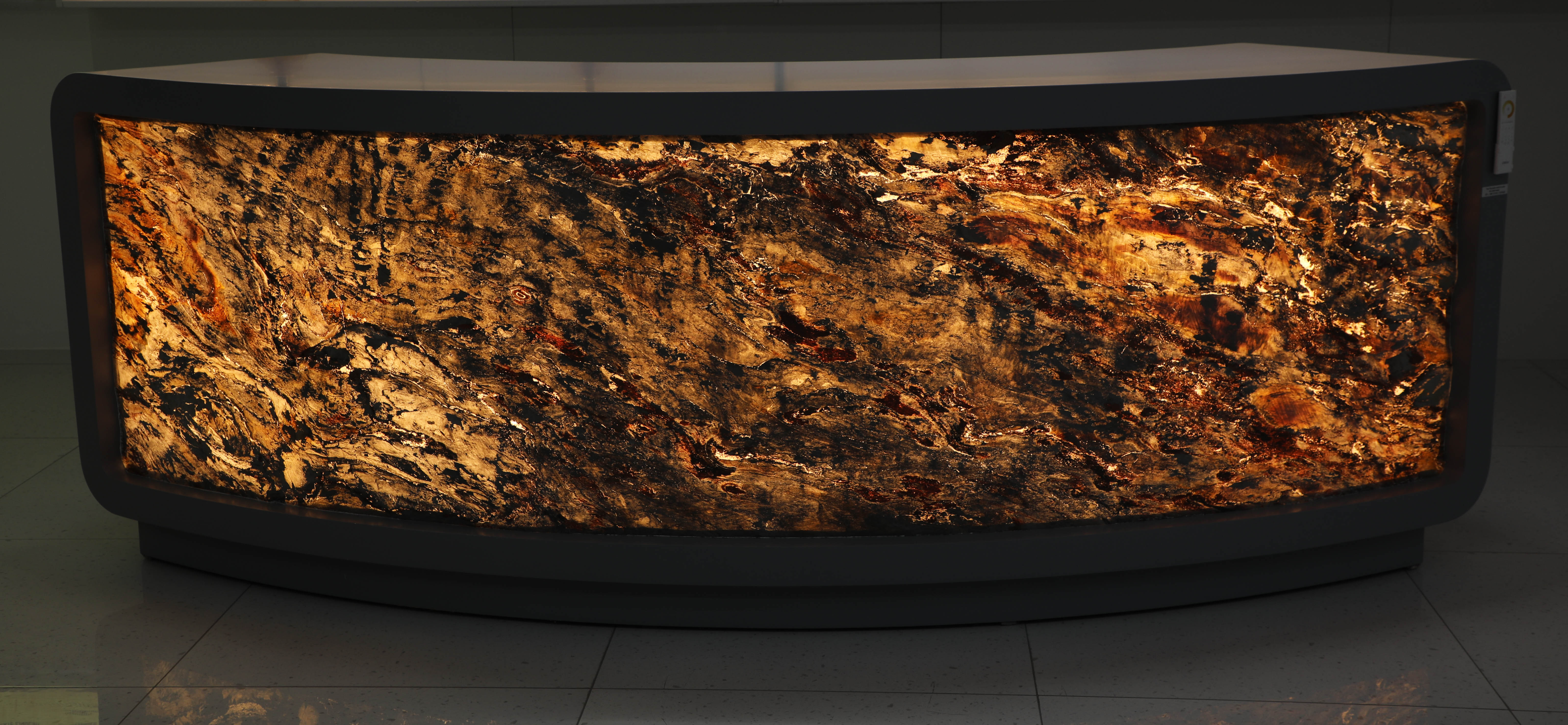

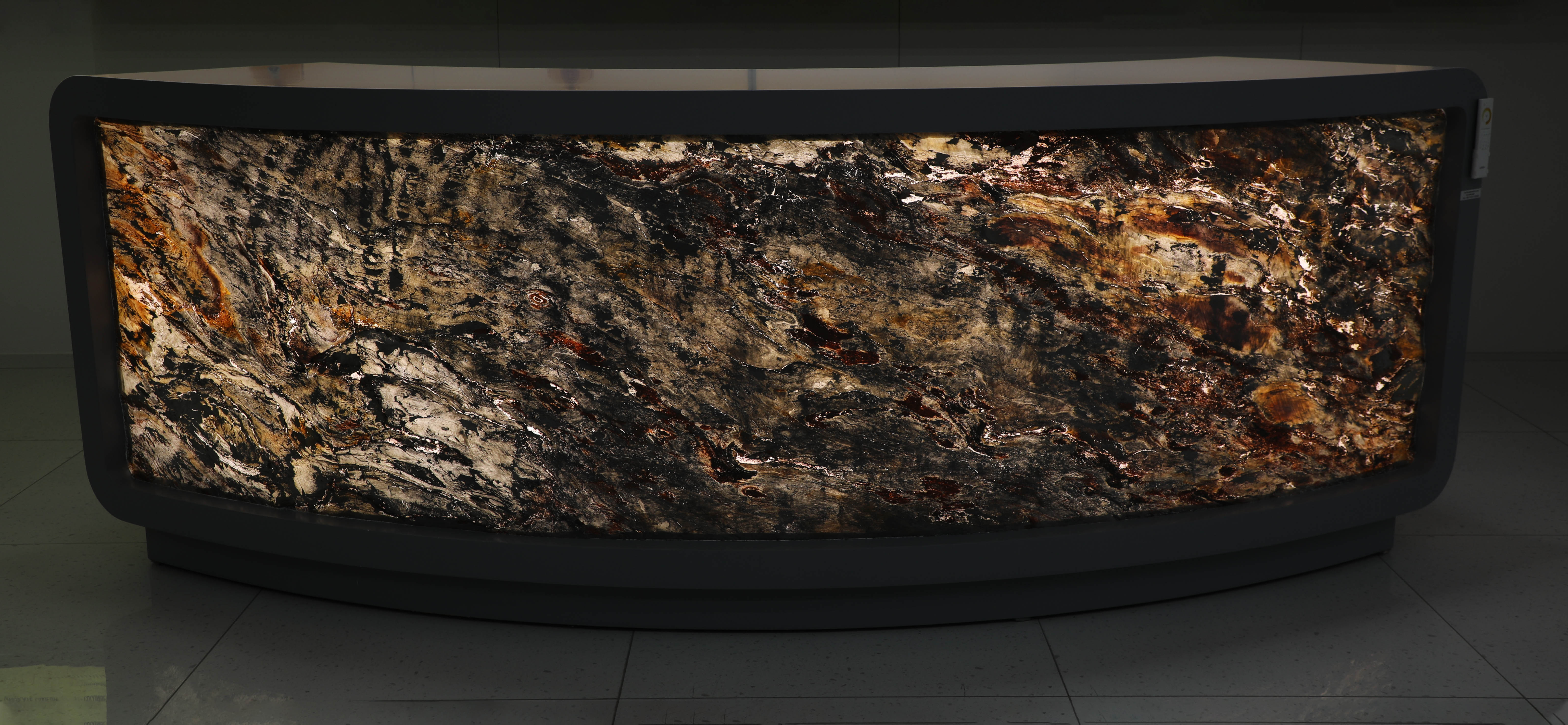

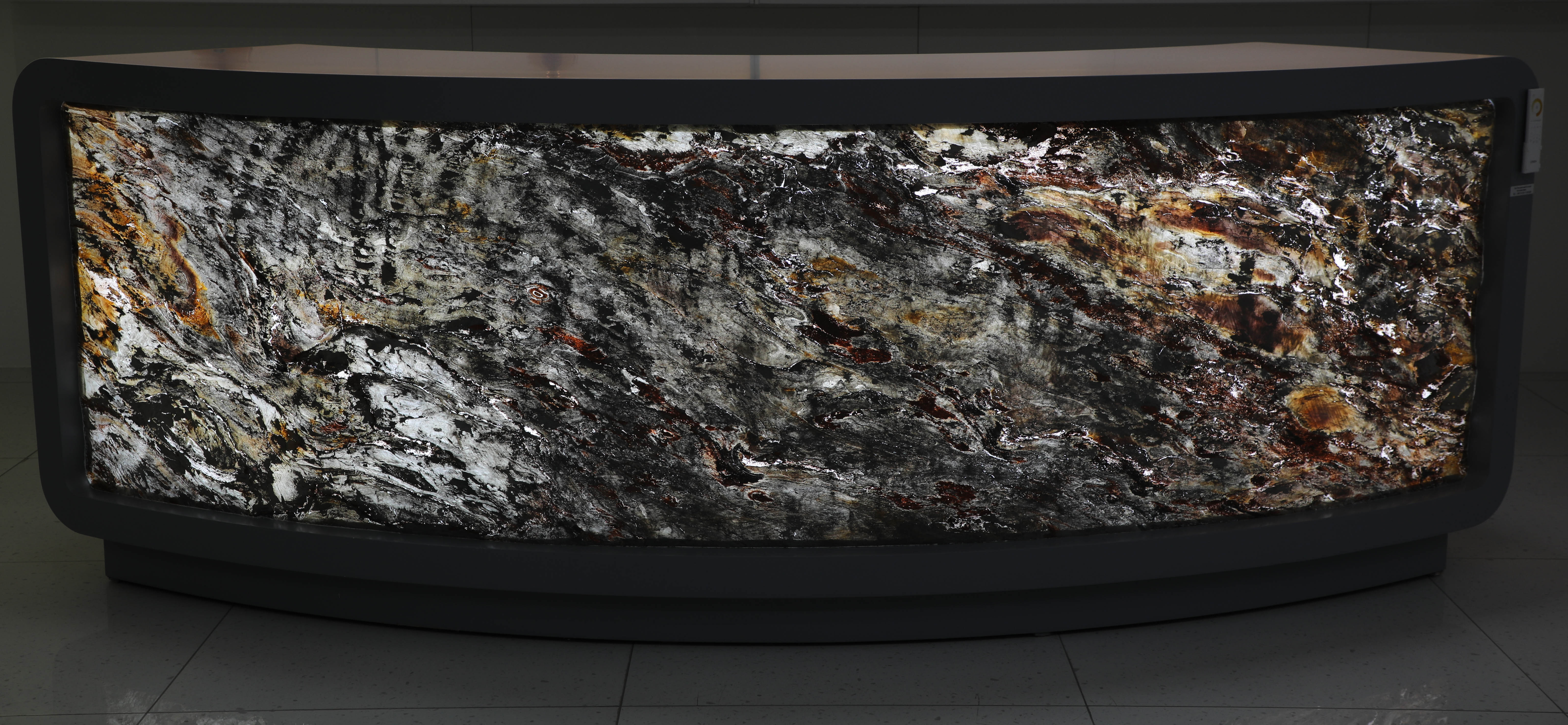

      1. Exclusive for the backlight of showcase, billboard, and signage light box in small size and thin width.
