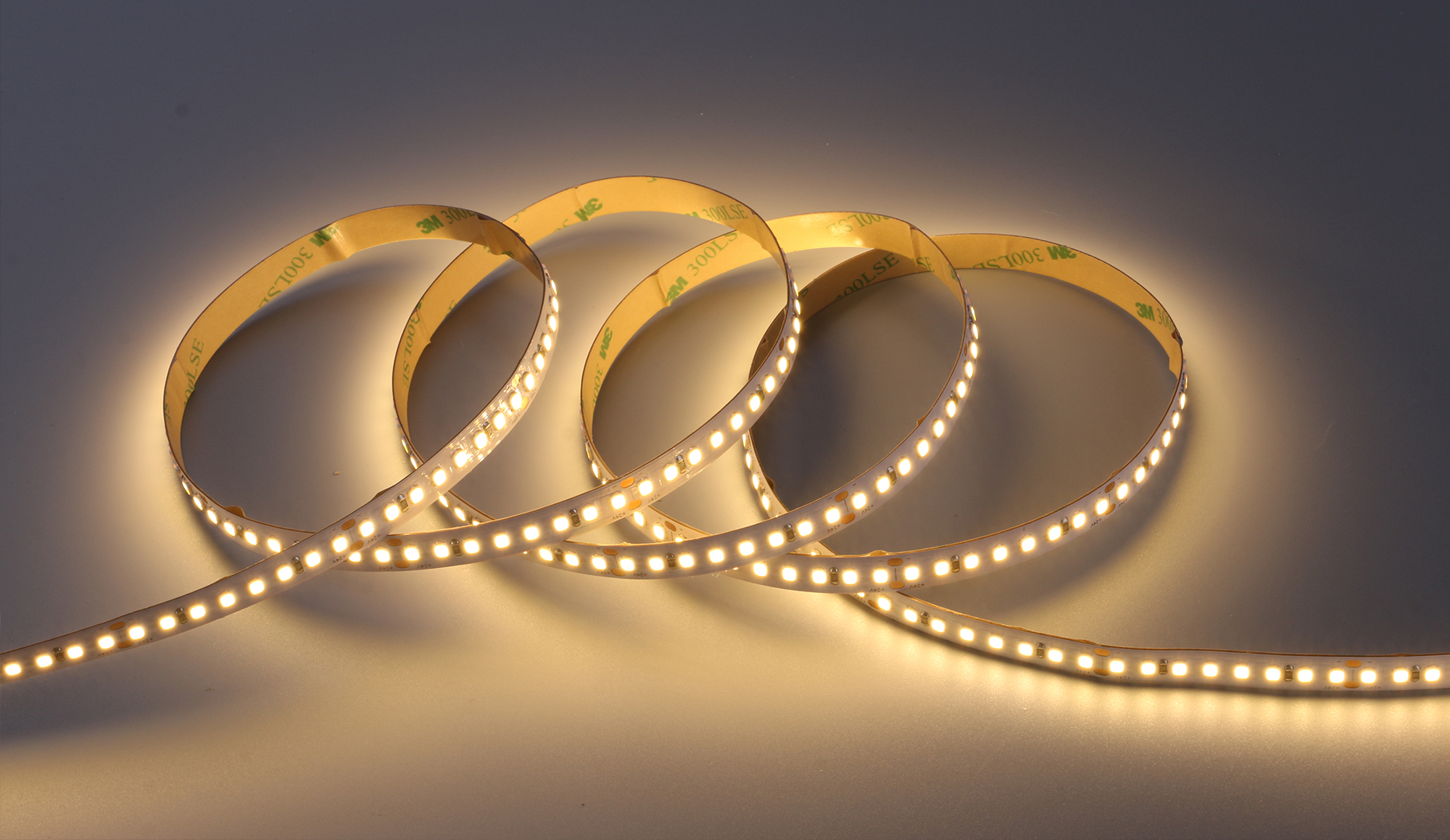

      High-Efficacy High-Brightness Series - 170lm/W 24V 160LED/M 10mm - L642

      Features
      -
      1. Hi-Efficacy Series with 8 LEDs per section, create high brightness output under same power consumption as luminary light engine.
      2. Indirect lighting for showcase, shelf, cabinet, billboard, signage hotel, garden, bridge, corridor, ceiling, stair, cove, theatre, lift etc.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness
      @4000K&CRI80

      Light Efficiency

      @4000K&CRI80

      		 Brightness
      @4000K&CRI90

      Light Efficiency

      @4000K&CRI90

      Beam

      Angle

      		 IP Rating
      GL-N2835XX-24-CV-160-L642 L3000*W10*H1mm
      [L118*W0.4*H0.04in]

      50mm
      [1.97in]

      SMD2835

      160LED/M
      [49LED/ft.]

      24VDC

      22W/M

      [6.7W/ft.]

      		 2700K
      3000K
      3500K
      4000K
      5000K
      6500K      		 3410lm/M
      [1040lm/ft.]      		 155lm/W / / 120°

      IP20/

      IP54/

      IP54 Plus
      [Dry/Damp]
      3740lm/M
      [1140lm/ft.]      		 170lm/W / /

      25W/M

      [7.62W/ft.]

      		 3880lm/M
      [1180lm/ft.]      		 155lm/W / /
      4250lm/M
      [1300lm/ft.]      		 170lm/W / /

      26W/M

      [7.9W/ft.]

      		 / / 3410lm/M
      [1040lm/ft.]      		 132lm/W
      / / 3740lm/M
      [1140lm/ft.]      		 145lm/W

      30W/M

      [9.1W/ft.]

      		 / / 3880lm/M
      [1180lm/ft.]      		 132lm/W
      / / 4250lm/M
      [1300lm/ft.]      		 145lm/W
      Download
      -

      • Datasheet - HIGH-EFFICACY HIGH-BRIGHTNESS SERIES - L642

      • Spectrum Report - High-Efficacy High-Brightness Series - L642

      • IES Report - High-Efficacy High-Brightness Series - L642

      Details
      -





      Application

      Accent and wall grazing lighitng for showcase, shelf, cabinet, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
