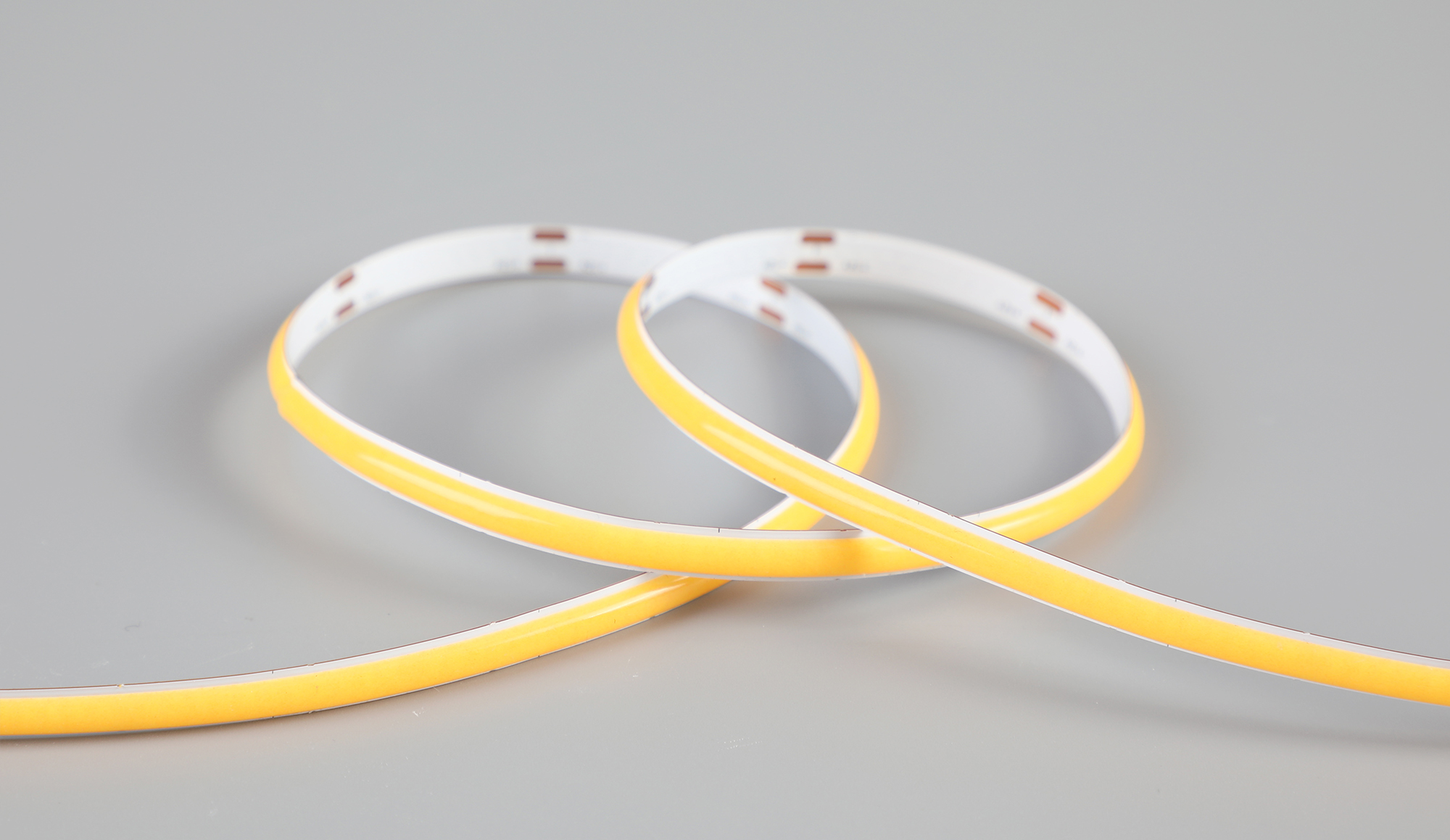

      COB Pro Series - White Ultra-Slim 24V 480Chips/M 5mm - 9476

      Features
      -
      1. High positioning, high reliability, ultra-thin appearance, and super flexible bending.
      2. Homogeneous and soft linear lighting performance for 3M[9.84ft.] length.
      3. Use thick copper that is superior to products on the market, to ensure consistency in voltage and brightness for the entire reel.
      4. Adopting an exclusively designed protective structure, with excellent bending resistance, strong reliability, and stable quality.
      5. Waterproof available in IP65 and IP67 Plus for indoor and outdoor scenes.
      6. 50,000 hours lifespan and 5-year warranty.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness

      Light Efficiency

      Brightness

      Light Efficiency

      		 Brightness Light Efficiency

      Beam

      Angle

      		 IP Rating
      GL-XFCOBXX-24-CV-480-9476 L3000*W5*H1.4mm
      [L118*W0.2*H0.06in.]

      50mm

      [1.97in.]

      COB

      (Chip On Board))

      480chips/M

      [146chips/ft.]

      24VDC

      6W/M

      [1.83W/ft.]

      2700K

      3000K

      4000K

      5000K

      6500K

      468lm/M[143lm/ft.]
      (2700K)

      78lm/W

      (2700K)

      504lm/M[154lm/ft.]
      (3000K)

      84lm/W
      (3000K)

      		 558lm/M[170lm/ft.]
      (4000K)      		 93lm/W
      (4000K)      		 150°

      IP20/

      IP65

      [Dry/Wet]
      576lm/M[176lm/ft.]
      (5000K)      		 96lm/W
      (5000K)      		 576lm/M[176lm/ft.]
      (6500K)      		 96lm/W
      (6500K)
      Download
      -

      • Datasheet - COB PRO SERIES - W ULTRA-SLIM - 9476

      Details
      -





      Application

      Iindirect decorative lighting for table, showcase, shelf, cabinet, corridor, stair, cove, ceiling etc.
