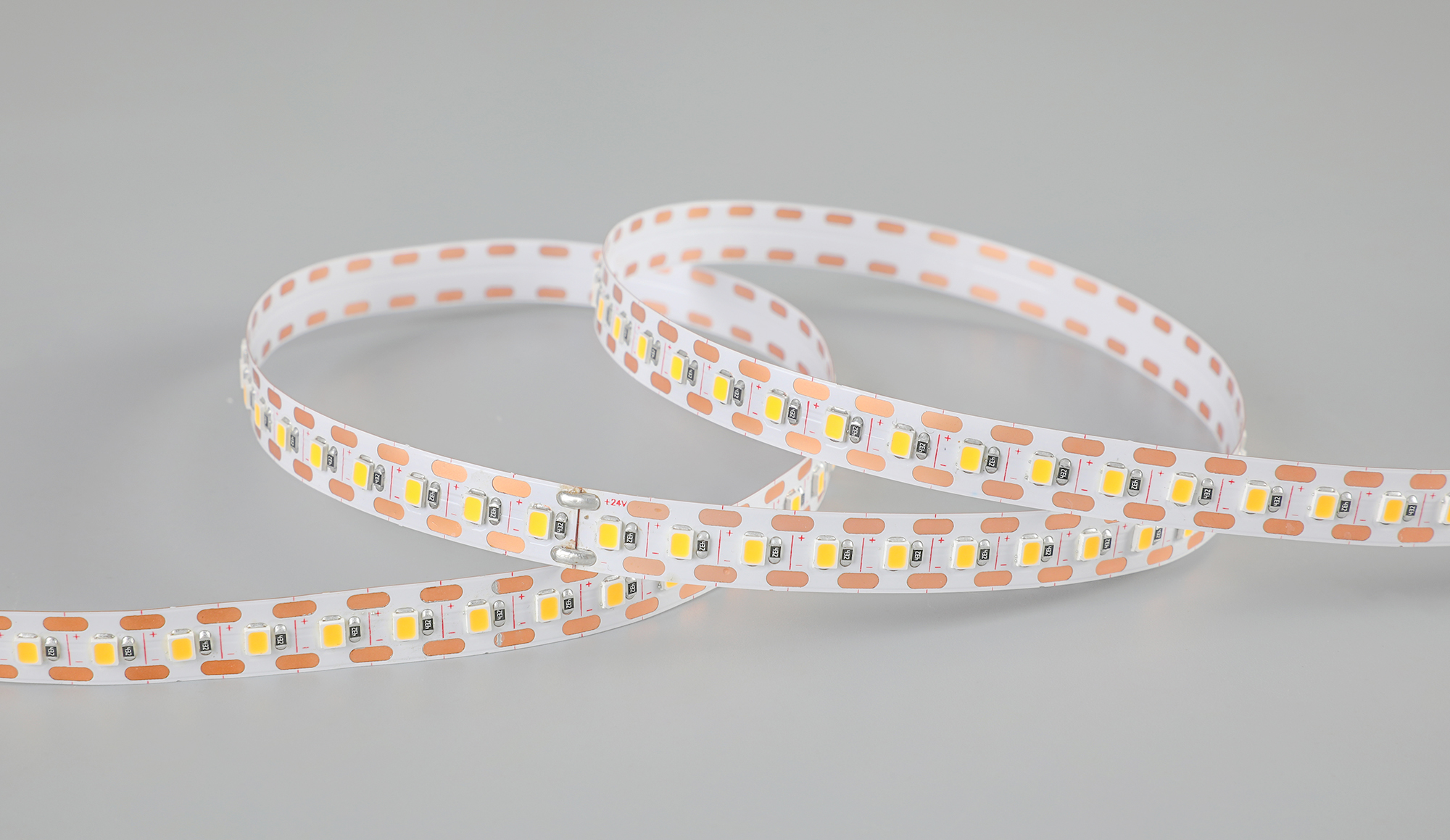

1. Uniform brightness and consistent color up to 20M[65.6ft.] run length, with power fed on one side.
2. Flexible customization and application with short-cutting design for any desired length.
3. Energy-saving with high-efficiency output in 110Im/W under 24VDC input.
4. Dot-free linear lighting performance can be realized when installed into the aluminum profile, with a high-density layout in 120LED/M[36LED/ft.].

Parameters
-

Part No.	Dimension	Increment	LED Type	LED Qty	Voltage	Power	CCT / Wavelength	Brightness @CRI80&4000K	Light Efficiency @CRI80&4000K	Brightness @CRI90&4000K	Light Efficiency @CRI90&4000K	Beam Angle	IP Rating
GL-N2835XX- 24-CV-120-9033	L10000W10H1mm [L394W0.39H0.04in.]	8.33mm [0.33in.]	SMD2835	120LED/M [36LED/ft.]	24VDC	10W/M [3.05W/ft.]	2700K 3000K 3500K 4000K 5000K 6500K	240lm/M [73lm/ft.]	110lm/W	940lm/M [285lm/ft.]	94lm/W	120°	IP20/ IP54/ IP54 Plus/ IP65/ IP67/ IP67 Plus Thin/ IP67 Plus/ IP68 [Dry/Damp/Wet]
L20000W10H1mm [L788W0.39H0.04in.]	4W/M [1.22W/ft.]	440lm/M [130lm/ft.]	110lm/W	380lm/M [115lm/ft.]	94lm/W

Part No.

Dimension

Increment

LED Type

LED Qty

Voltage

Power

CCT /
Wavelength

Brightness
@CRI80&4000K

Light Efficiency

@CRI80&4000K

Brightness
@CRI90&4000K

Light Efficiency

@CRI90&4000K

Beam

Angle

IP Rating

GL-N2835XX-

24-CV-120-9033

L10000*W10*H1mm
[L394*W0.39*H0.04in.]

8.33mm

[0.33in.]

SMD2835

120LED/M

[36LED/ft.]

24VDC

10W/M

[3.05W/ft.]

2700K
3000K

3500K
4000K
5000K
6500K

240lm/M
[73lm/ft.]

110lm/W

940lm/M
[285lm/ft.]

94lm/W

120°

IP20/

IP54/

IP54 Plus/

IP65/

IP67/

IP67 Plus Thin/

IP67 Plus/

IP68
[Dry/Damp/Wet]

L20000*W10*H1mm
[L788*W0.39*H0.04in.]

4W/M

[1.22W/ft.]

440lm/M
[130lm/ft.]

110lm/W

380lm/M
[115lm/ft.]

94lm/W

Download
-

Datasheet - ULTRA-LONG SERIES - 10/20M SHORT-CUTTING - 9033

Spectrum Report - Ultra-Long Series - 10/20M Short-Cutting - 9033

IES Report - Ultra-Long Series - 10/20M Short-Cutting - 9033

Details
-

Application

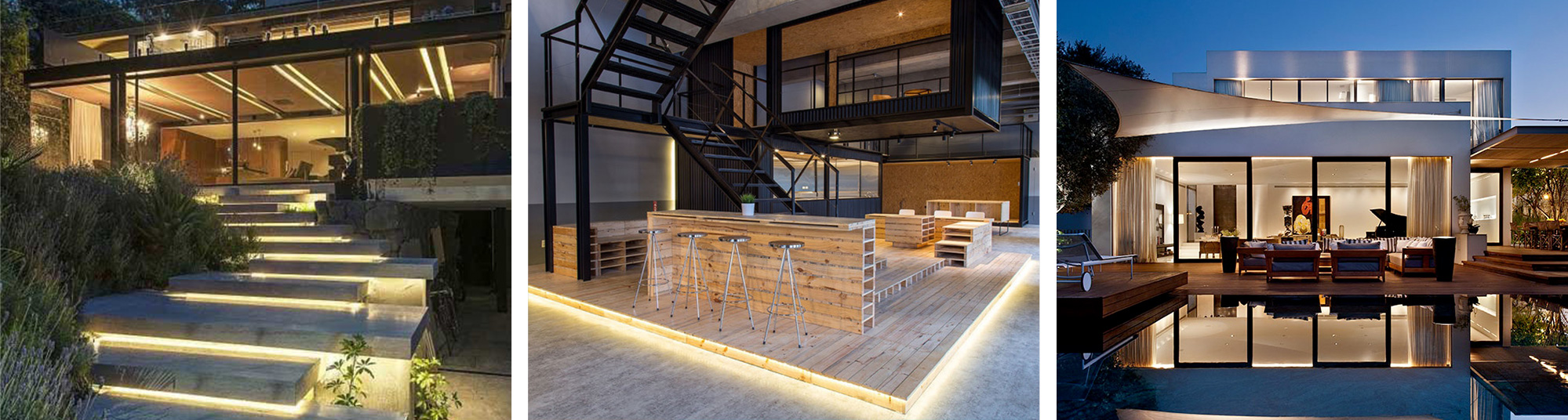

1. Ideal for indirect lighting applying at architectural contour, corridor, stair, ceiling, cove, handrail, skirting, barrier, garden, bridge, lift etc.
