1. Very uniform brightness and consistent color for the entire run length up to 50M [164ft.], with power fed on one side.
2. Brightness rated in 1600lm/M[490lm/ft.], 1100lm/M[335lm/ft.] and 600lm/M[180lm/ft.].
3. Energy saving with high-efficacy design up to 125lm/W, adopting the popular power supply in 48V input.
4. High-density LED array in 130LEDs/M[39LEDs/ft.], can achieve dot-free linear lighting performance without dark spot, when fixed into aluminum profile as light source.

Parameters
-

Part No.	Dimension	Increment	LED Type	LED Qty	Voltage	Power	CCT / Wavelength	Brightness @CRI80& 2700K+6500K	Light Efficiency @CRI80& 2700K+6500K	Brightness @CRI90& 2700K+6500K	Light Efficiency @CRI90& 2700K+6500K	Beam Angle	IP Rating
GL-N2835XX-48- CV-130-LN21	L20000W12H1mm [L787W0.48H0.04in.]	100mm [3.94in.]	SMD 2835	130LED/M [39LED/ft.]	48VDC	14.4W/M [4.39W/ft.]	2700K 3000K 3500K 4000K 5000K 6500K	1610lm/M [490lm/ft.]	112lm/W	1370lm/M [420lm/ft.]	95lm/W	120°	IP20/ IP67 Plus [Dry/Wet]
L30000W12H1mm [L1181W0.48H0.04in.]	9.6W/M [2.93W/ft.]	1130lm/M [340lm/ft.]	118lm/W	960lm/M [290lm/ft.]	100lm/W
L50000W12H1mm [L1969W0.48H0.04in.]	4.8W/M [1.46W/ft.]	600lm/M [180lm/ft.]	125lm/W	510lm/M [160lm/ft.]	106lm/W

Part No.

Dimension

Increment

LED Type

LED Qty

Voltage

Power

CCT /
Wavelength

Brightness
@CRI80&

2700K+6500K

Light Efficiency
@CRI80&

2700K+6500K

Brightness
@CRI90&

2700K+6500K

Light Efficiency
@CRI90&

2700K+6500K

Beam

Angle

IP Rating

GL-N2835XX-48-
CV-130-LN21

L20000*W12*H1mm
[L787*W0.48*H0.04in.]

100mm

[3.94in.]

SMD

2835

130LED/M

[39LED/ft.]

48VDC

14.4W/M

[4.39W/ft.]

2700K

3000K

3500K

4000K

5000K

6500K

1610lm/M
[490lm/ft.]

112lm/W

1370lm/M
[420lm/ft.]

95lm/W

120°

IP20/

IP67 Plus
[Dry/Wet]

L30000*W12*H1mm
[L1181*W0.48*H0.04in.]

9.6W/M

[2.93W/ft.]

1130lm/M
[340lm/ft.]

118lm/W

960lm/M
[290lm/ft.]

100lm/W

L50000*W12*H1mm
[L1969*W0.48*H0.04in.]

4.8W/M

[1.46W/ft.]

600lm/M
[180lm/ft.]

125lm/W

510lm/M
[160lm/ft.]

106lm/W

Download
-

Datasheet - ULTRA-LONG SERIES - 20/30/50M 48V W - LN21

Spectrum Report - Ultra-Long Series - 20/30/50M 48V W - LN21

IES Report - Ultra-Long Series - 20/30/50M 48V W - LN21

Details
-

Application

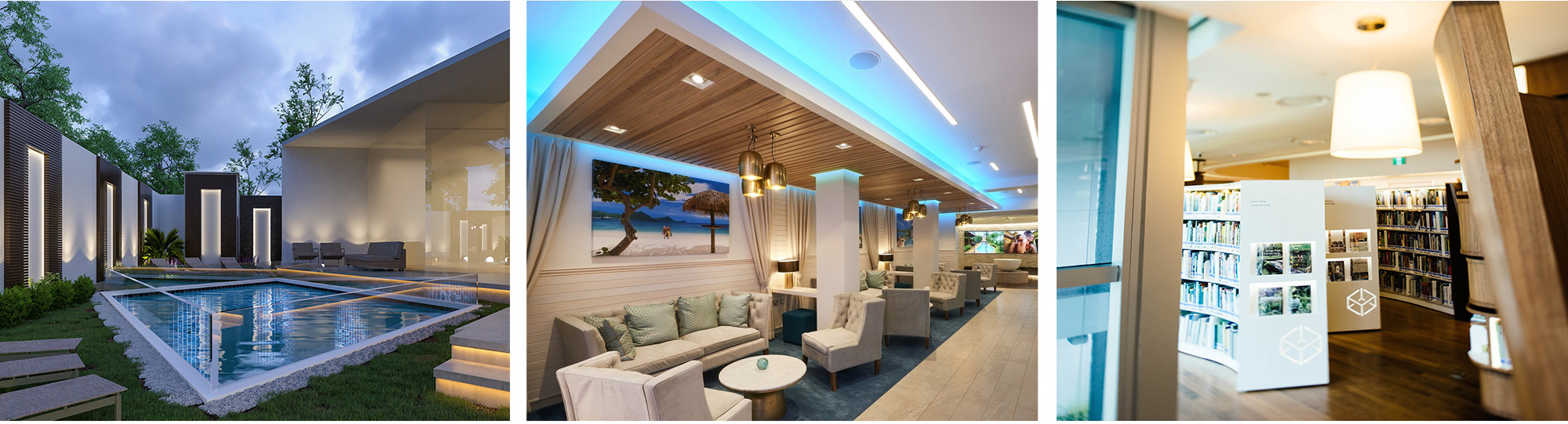

1.Ideal for indirect lighting applying at architectural contour, corridor, stair, ceiling, cove, handrail, skirting, barrier, garden, bridge, lift etc
