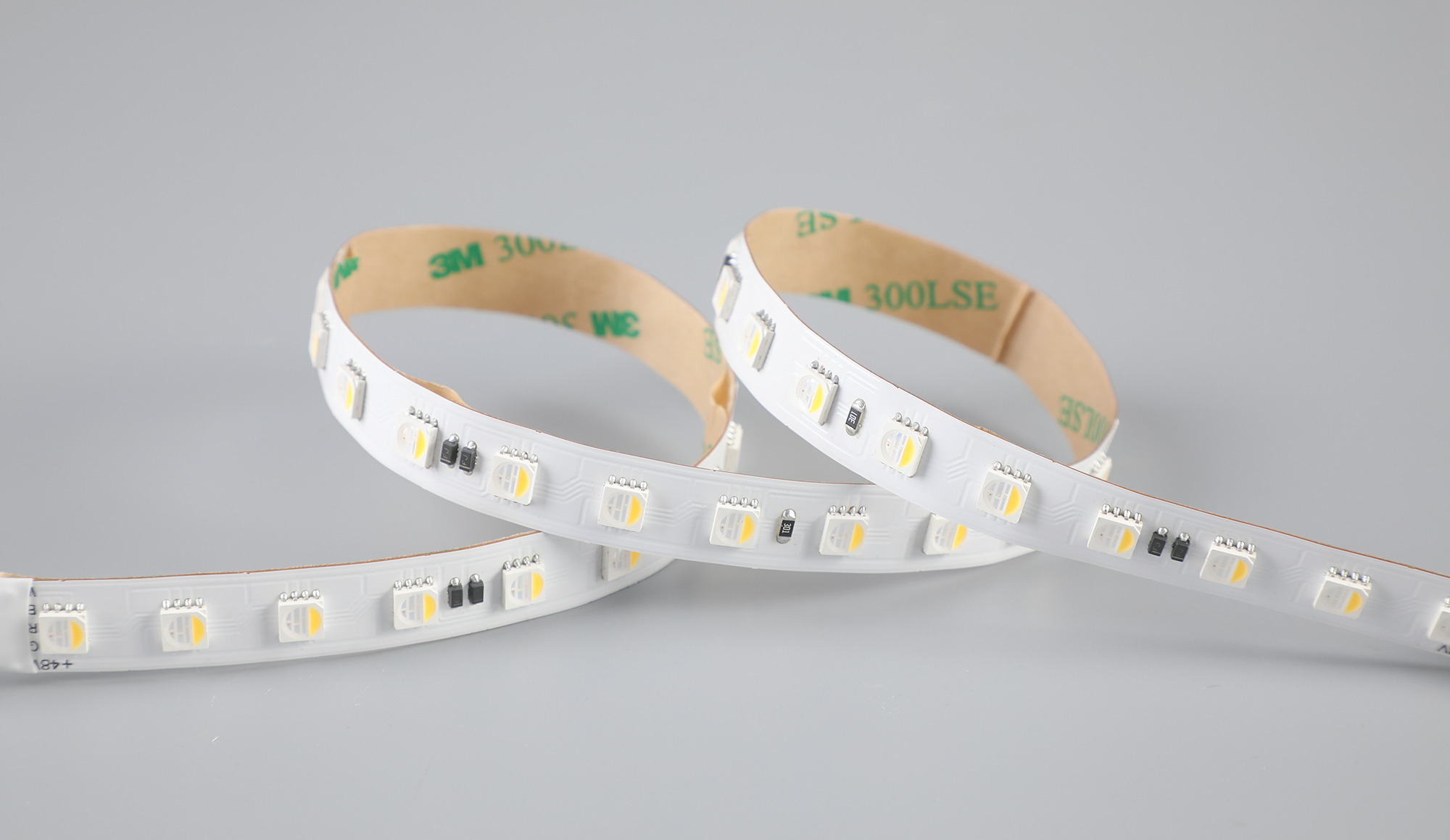

      Ultra-Long Series - RGBW 20M 48V 78LED/M 12mm - 9035

      Features
      -
      1. Very uniform brightness and consistent color for the entire run length up to 20M [65.6ft.], with power fed on one side.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness
      @Mix&CRI80

      Brightness

      @Red

      		 Brightness
      @Green

      Brightness

      @Blue

      Brightness

      @3000K&CRI80

      Beam

      Angle

      		 IP Rating

      GL-N5050XX-

      48-CV-078-9035

      		 L10000*W12*H2mm
      [L394*W0.48*H0.08in.]

      166.7mm

      [6.56in.]

       SMD5050

      RGBW

      78LED/M

      [23LED/ft.]

      48VDC

      21W/M

      [6.4W/ft.]

      R: 625-630nm,

      G:520~525nm,

      B:460~470nm

      W:3000K&
      3500K&4000K&
      5000K&6500K

      1280lm/M
      [390lm/ft.]

      		 180lm/M
      [55lm/ft.]      		 400lm/M
      [120lm/ft.]      		 130lm/M
      [40lm/ft.]      		 570lm/M
      [174lm/ft.]      		 120°

      IP20/

      IP67 Plus
      [Dry/Wet]
      L20000*W12*H2mm
      [787*W0.48*H0.08in.]

      14W/M

      [4.27W/ft.]

      		 795lm/M
      [242lm/ft.]      		 110lm/M
      [34lm/ft.]      		 285lm/M
      [87lm/ft.]      		 80lm/M
      [24lm/ft.]      		 320lm/M
      [98lm/ft.]
      Download
      -

      • Datasheet - ULTRA-LONG SERIES - 10/20M 48V RGBW - 9035

      • Spectrum Report - Ultra-Long Series - 10/20M 48V RGBW - 9035

      Details
      -





      Application

      1.Ideal for indirect lighting applying at architectural contour, corridor, stair, ceiling, cove, handrail, skirting, barrier, garden, bridge, lift etc
