      Advertising Backlit Series - Light Bar White 24V 12LED 960*20mm - A104

      Features
      -
      1. Rigid light bar using aluminum PCB for better heat dissipation, while running at high power and high brightness.
      2. Additional lens with 180°beam angle, available to get better uniformity with less LED quantity and lower height for a light box.
      3. On-site board-to-board/board-to-power split joint by on-board Wago female connector, exclusive for back light of showcase, billboard and signage light box in small size and thin thickness.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness
      @4000K&CRI80      		 Light Efficiency
      @4000K&CRI80

      Brightness
      @4000K&CRI90

      		 Light Efficiency
      @4000K&CRI90

      Beam

      Angle

      		 IP Rating

      PCB Type
      GL-R2835XX-24-CV-013-A104 L960*W20*H6.8mm
      [L38*W0.8*H0.27in.]

      240mm

      [9.5in.]

      SMD

      2835

      12pcs

      24VDC

      14.4W

      2700K/

      3000K/

      3500K/

      4000K/

      5000K/

      6500K

      		 1440lm 100lm/W 1220lm 85lm/W 180° IP20
      [Dry]

      Aluminum
      Download
      -

      • Datasheet - ADVERTISING BACKLIT SERIES - BAR - A104

      • Spectrum Report - Advertising Backlit Series - Bar - A104

      • IES Report - Advertising Backlit Series - Bar - A104

      Details
      -

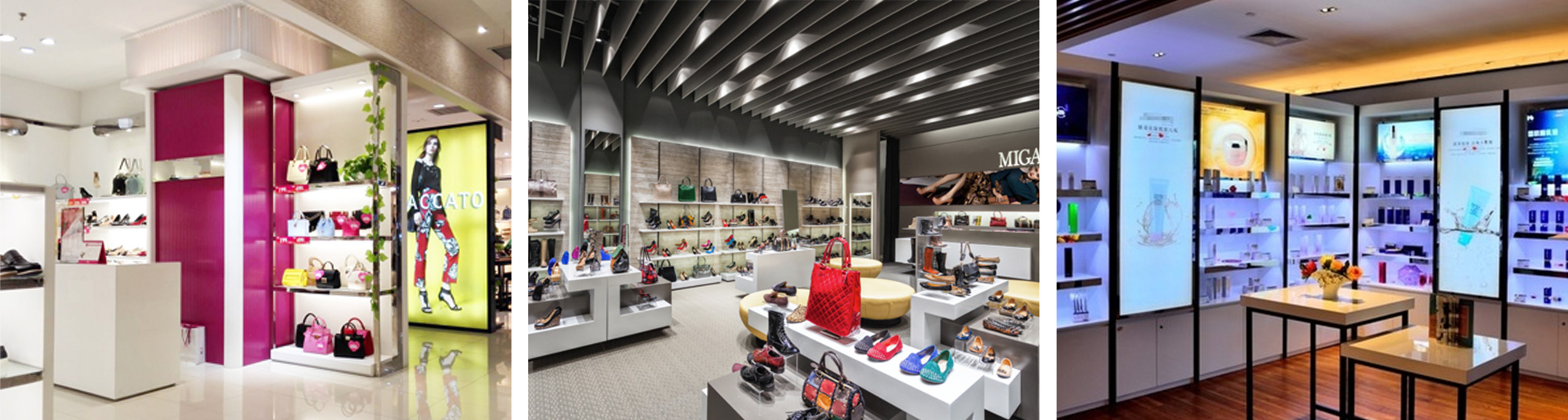

      Application

      1. Backlit of light box and light ceiling in signage system.

      2. Widely usage in residential, retail and hospitality market.
