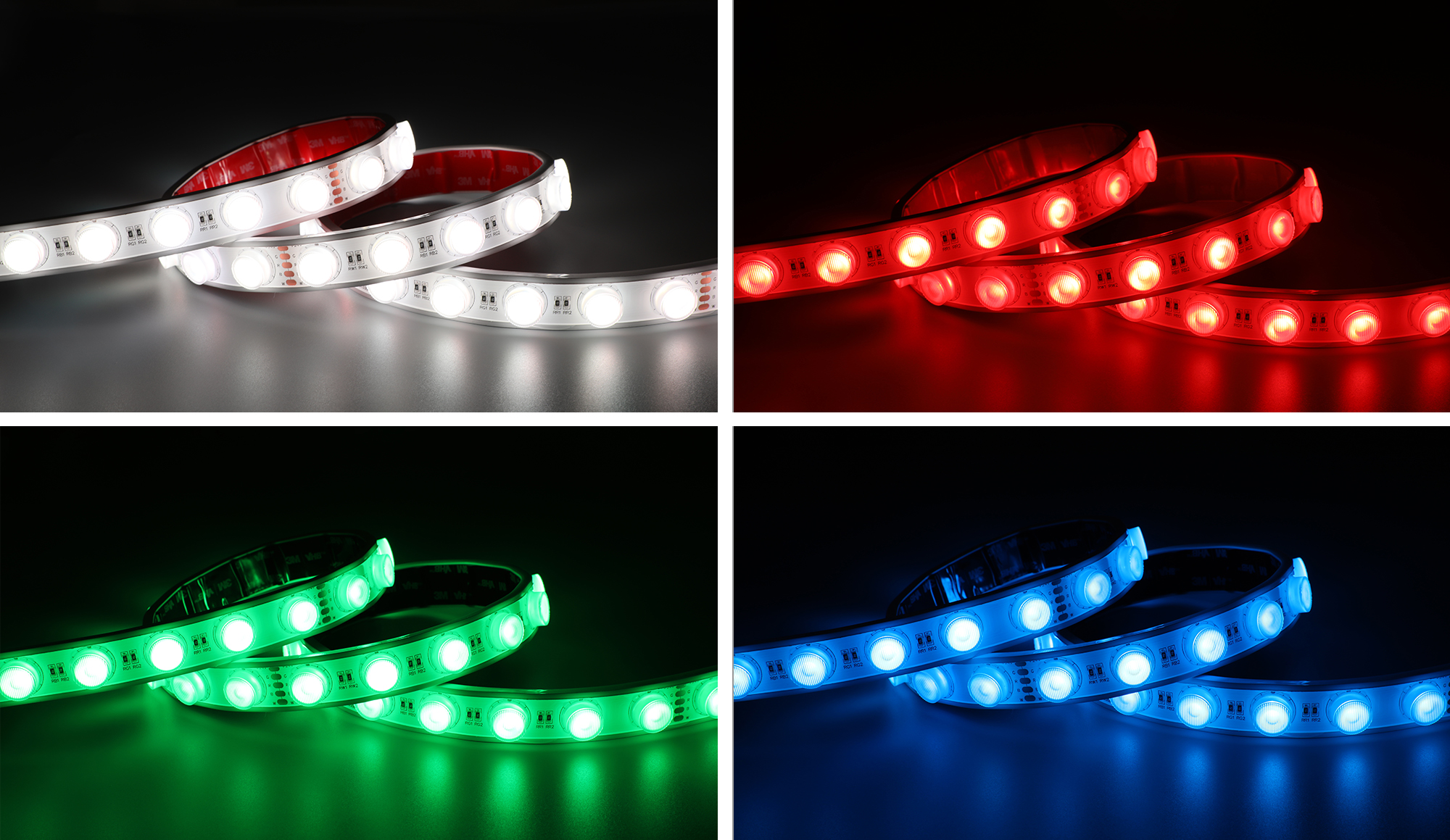

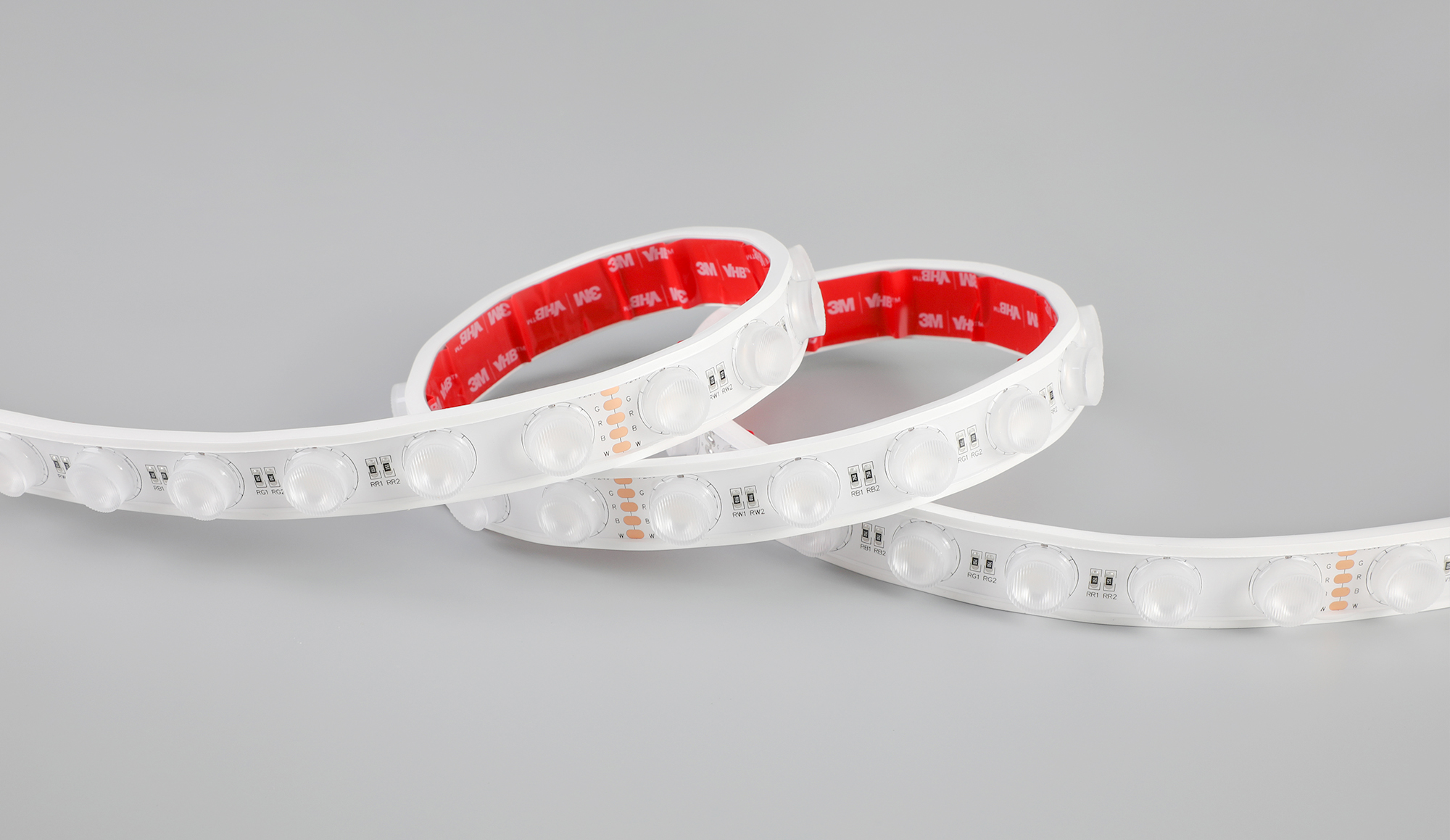

1. Top-bend flexible wall washer with features of convenient processing and customization.
2. High transmittance of PC lens with grazing angles in 40° and asymmetric 40°*45°.
3. Uniform brightness and color up to 5M [16.4ft.] run length.
4. On-field cuttable and assembly to be the desired length.
5. IP67 for indoor and outdoor usage.
6. Complete installation accessories with adhesive tape, clip, aluminum channel, bracket and rotatable bracket.
7. Environmentally friendly, high-grade appearance, soft bend flexibility, and high weather resistance, using silicone material.
8. 50,000 hours of LED lifespan, and 5 years warranty.

Parameters
-

Part No.	Style	Dimension	Increment	LED Type	LED Qty	Voltage	Power	CCT / Wavelength	Brightness @CRI80&3000K	Brightness @CRI90&3000K	Beam Angle	IP Rating
GL-XLENSXX- 24-CV-036-9133	Top-Bend (RGBW)	W23xH11.5mm [W0.9xH0.45in.]	166.7mm [6.56in.]	SMD 5050	36LED/M [11LED/ft.]	24VDC	23W/M [7W/ft.]	R:620-630mm G:520-530mm B:460-470mm W:2700~6500K	R:230lm/M[70lm/ft.] G:460lm/M [140lm/ft.] B:110lm/M [30lm/ft.] W:600lm/M [180lm/ft.]	R:230lm/M[70lm/ft.] G:460lm/M[140lm/ft.] B:110lm/M [30lm/ft.] W:510lm/M[160lm/ft.]	40°/ 40°*45° (40° perpendicular to the strip, 45° parallel to the strip.)	IP67 [Wet]

Part No.

Style

Dimension

Increment

LED Type

LED Qty

Voltage

Power

CCT /
Wavelength

Brightness
@CRI80&3000K

Brightness
@CRI90&3000K

Beam

Angle

IP Rating

GL-XLENSXX-

24-CV-036-9133

Top-Bend
(RGBW)

W23xH11.5mm
[W0.9xH0.45in.]

166.7mm
[6.56in.]

SMD
5050

36LED/M
[11LED/ft.]

24VDC

23W/M
[7W/ft.]

R:620-630mm
G:520-530mm
B:460-470mm
W:2700~6500K

R:230lm/M[70lm/ft.]
G:460lm/M [140lm/ft.]
B:110lm/M [30lm/ft.]
W:600lm/M [180lm/ft.]

R:230lm/M[70lm/ft.]
G:460lm/M[140lm/ft.]
B:110lm/M [30lm/ft.]
W:510lm/M[160lm/ft.]

40°/
40°*45°
(40°

perpendicular
to the strip,

45°
parallel to

the strip.)

IP67
[Wet]

Download
-

Datasheet - FLEXIBLE WALL WASHER SERIES - RGBW - 9133

Spectrum Report - Flexible Wall Washer Series - RGBW - 9133

IES Report - Flexible Wall Washer Series - RGBW - 9133

Details
-

Application

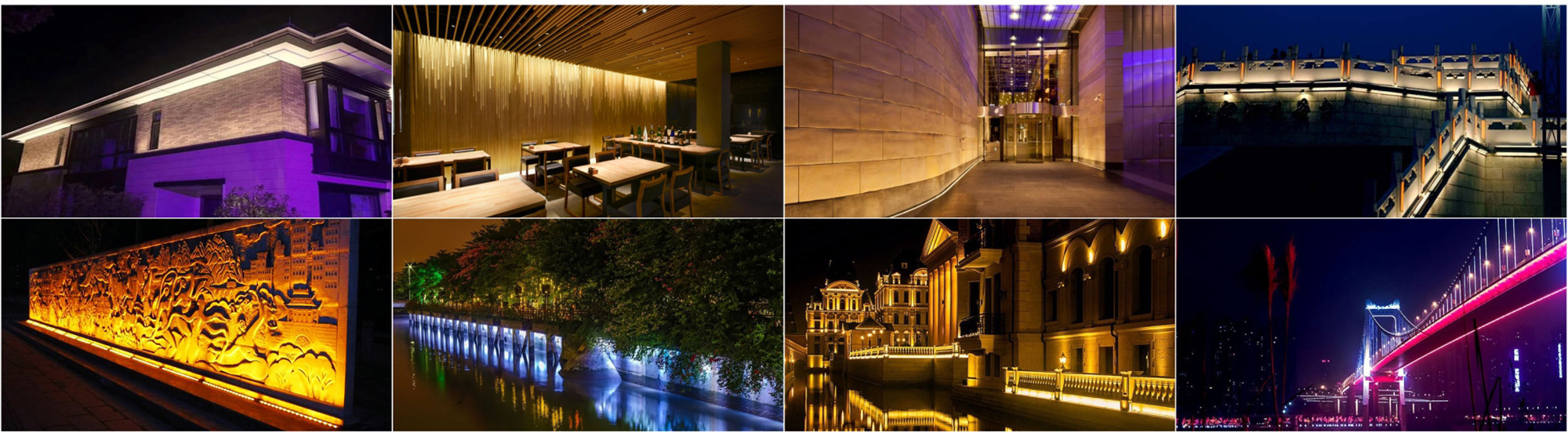

1. Hospitality / Landscape / Architecture.
2. Ideal for grazing, wall washing and architecture facades, making contours and patterns more stereoscopic and vivid.
