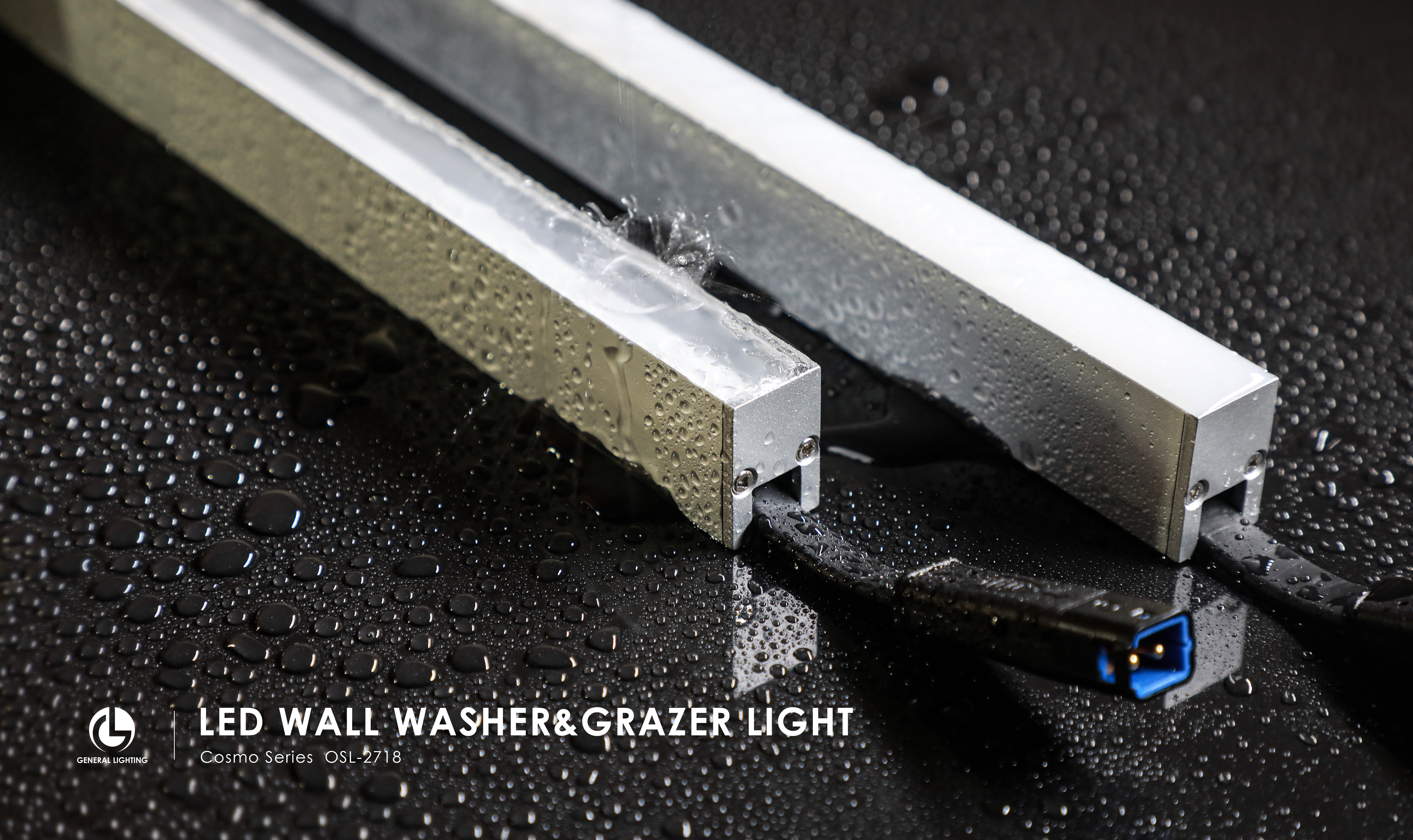

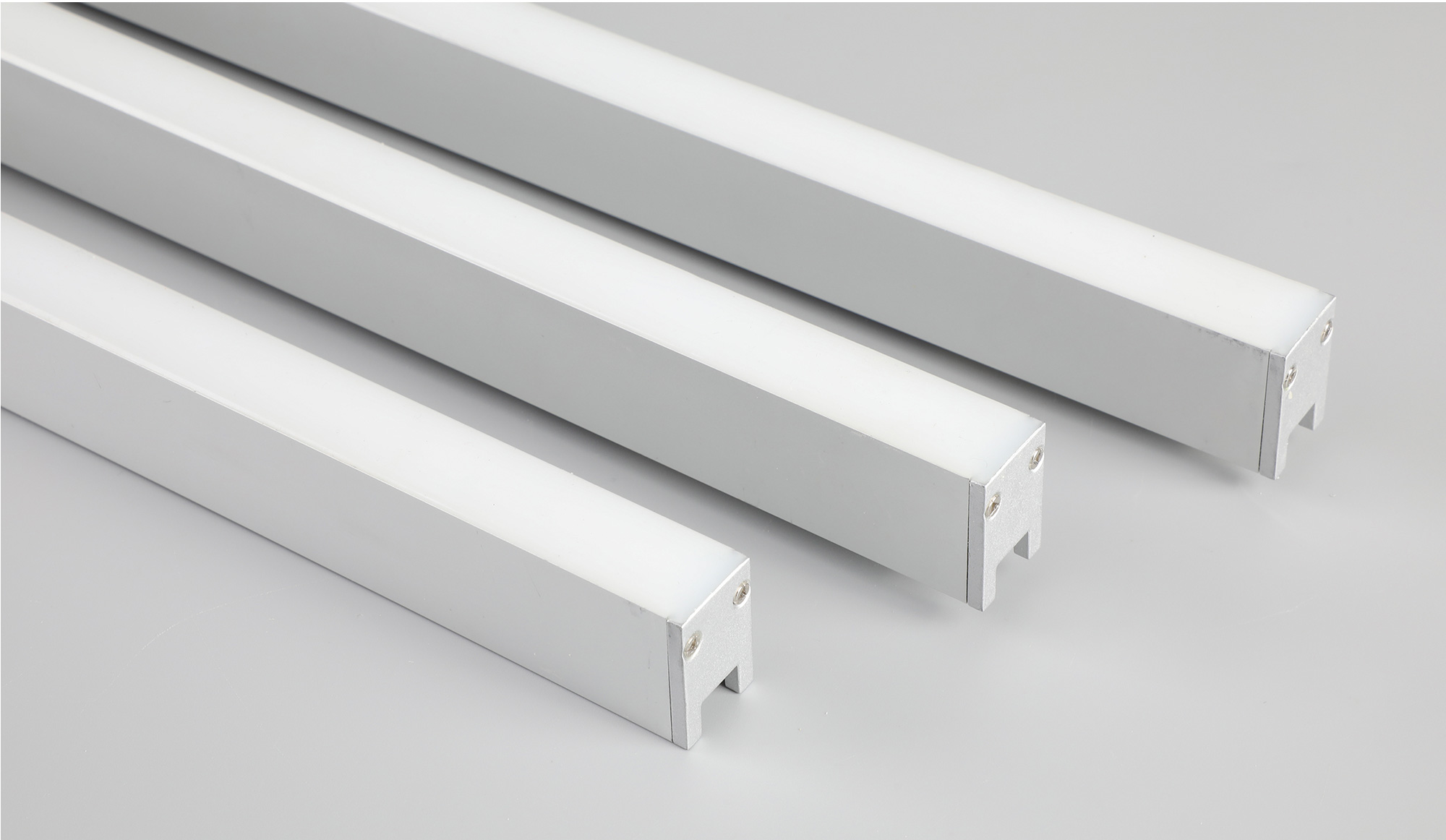

      Cosmo Series - Versatile Accent Lighting - OSL-2718

      Features
      -
      1. Versatile linear accent light with small and delicate appearance.
      2. Available in white, RGBW and DMX RGBW, with beam angle in 120°, 15°, 30°, 45° and 60°.
      3. Field splicing up to 10M[32.8ft.] run length with light seamless performance.
      4. Support pixel control by DMX signal (DMX IC model is UCS512H with grey scale in 65536) for colorful rhythm in architecture and landscape.
      5. High-quality weather resistant PU material, optical grade high transmittance PMMA lens, and complete installation accessories.
      6. Tough structure design with IK10 impact protection.
      7. IP67 protection against dust & water for indoor and outdoor usage.
      8. 50,000h LED lifespan, 3 years warranty, CE/UL/RoHS certified.
      Parameters
      -

      OSL-2718 White



      Part No.

      Beam

      Angle

      		 Dimension

      Max.

      Splicing

      Length

      		 Voltage Power CCT/
      Wavelength      		 Brightness
      @4000K&CRI80      		 Light Eff.
      @4000K&CRI80      		 Brightness
      @4000K&CRI90      		 Light Eff.
      @4000K&CRI90      		 IP&IK
      Rating
      OSL-2718-24-XX-0304-E-CVXX  120° L310*W18*H27mm
      [L12.2*W0.7*H1.06in.]      		 10M
      [32.8ft.]      		 24VDC 8W 2400K
      2700K
      3000K
      4000K
      5000K
      6500K      		 500lm 63lm/W 430lm 54lm/W IP67
      [Wet]
      &
      IK08
      OSL-2718-24-XX-0304-F-CVXX 15° 800lm 100lm/W 680lm 85lm/W
      OSL-2718-24-XX-0304-B-CVXX 30°  900lm 113lm/W 770lm 96lm/W
      OSL-2718-24-XX-0304-C-CVXX 45°  980lm 123lm/W 840lm 105lm/W
      OSL-2718-24-XX-0304-D-CVXX 60°  900lm 113lm/W 770lm 96lm/W
      OSL-2718-24-XX-0609-E-CVXX  120° L615*W18*H27mm
      [L24.2*W0.7*H1.06in.]      		 15W 940lm 63lm/W 800lm 54lm/W
      OSL-2718-24-XX-0609-F-CVXX 15° 1500lm 100lm/W 1275lm 85lm/W
      OSL-2718-24-XX-0609-B-CVXX  30° 1690lm 113lm/W 1440lm 96lm/W
      OSL-2718-24-XX-0609-C-CVXX 45°  1840lm 123lm/W 1570lm 105lm/W
      OSL-2718-24-XX-0609-D-CVXX 60°  1690lm 113lm/W 1440lm 96lm/W
      OSL-2718-24-XX-1000-E-CVXX  120° L1002*W18*H27mm
      [L39.4*W0.7*H1.06in.]      		 26W 1690lm  65lm/W 1440lm 55lm/W
      OSL-2718-24-XX-1000-F-CVXX 15° 2600lm 100lm/W 2210lm 85lm/W
      OSL-2718-24-XX-1000-B-CVXX  30° 2750lm 106lm/W 2340lm 90lm/W
      OSL-2718-24-XX-1000-C-CVXX 45°  3170lm 122lm/W 2700lm 104lm/W
      OSL-2718-24-XX-1000-D-CVXX 60°  2750lm 106lm/W 2340lm 90lm/W
      OSL-2718-24-XX-1220-E-CVXX  120° L1226*W18*H27mm
      [L48.2*W0.7*H1.06in.]      		 30W 1960lm 65lm/W 1670lm 56lm/W
      OSL-2718-24-XX-1220-F-CVXX 15° 3000lm 100lm/W 2550lm 85lm/W
      OSL-2718-24-XX-1220-B-CVXX  30° 3170lm 106lm/W 2700lm 90lm/W
      OSL-2718-24-XX-1220-C-CVXX 45°  3670lm 123lm/W 3120lm 104lm/W
      OSL-2718-24-XX-1220-D-CVXX 60°  3170lm 106lm/W 2700lm 90lm/W





      OSL-2718 RGBW



      Part No.

      Beam

      Angle

      		 Dimension  Max.
      Splicing
      Length      		 Voltage Power Finished Product
      CCT/
      Wavelength      		 Brightness
      @4000K&CRI80      		 Brightness
      @4000K&CRI90      		 IP&IK
      Rating
      OSL-2718-24-M4-0304-E-CVXX  120° L310*W18*H27mm
      [L12.2*W0.7*H1.06in.]      		 10M
      [32.8ft.]      		 24VDC 5W R: 610-630nm
      G: 520-540nm
      B: 460-480nm
      W: 2700-6500K      		 130lm 120lm IP67
      [Wet]
      &
      IK08
      OSL-2718-24-M4-0304-B-CVXX 30°  270lm 250lm
      OSL-2718-24-M4-0304-C-CVXX 45°  260lm 240lm
      OSL-2718-24-M4-0304-D-CVXX 60°  260lm 240lm
      OSL-2718-24-M4-0609-E-CVXX  120° L615*W18*H27mm
      [L24.2*W0.7*H1.06in.]      		 10W 270lm 250lm
      OSL-2718-24-M4-0609-B-CVXX  30° 540lm 500lm
      OSL-2718-24-M4-0609-C-CVXX 45°  510lm 480lm
      OSL-2718-24-M4-0609-D-CVXX 60°  510lm 480lm
      OSL-2718-24-M4-1000-E-CVXX  120° L1002*W18*H27mm
      [L39.4*W0.7*H1.06in.]      		 18W 500lm 470lm
      OSL-2718-24-M4-1000-B-CVXX  30° 910lm 850lm
      OSL-2718-24-M4-1000-C-CVXX 45°  830lm 780lm
      OSL-2718-24-M4-1000-D-CVXX 60°  830lm 780lm
      OSL-2718-24-M4-1220-E-CVXX 120° L1226*W18*H27mm
      [L48.2*W0.7*H1.06in.]      		 20W 570lm 530lm
      OSL-2718-24-M4-1220-B-CVXX  30° 1020lm 950lm
      OSL-2718-24-M4-1220-C-CVXX 45°  930lm 870lm
      OSL-2718-24-M4-1220-D-CVXX 60°  930lm 870lm





      OSL-2718 DMX RGBW



      Part No.

      Beam

      Angle

      		 Dimension Max.
      Splicing
      Length      		 Voltage Power Finished Product
      CCT/
      Wavelength      		 Brightness
      @4000K&CRI80      		 Brightness
      @4000K&CRI90      		 IP&IK
      Rating
      OSL-2718-24-M4-0304-E-CVXX  120° L310*W18*H27mm
      [L12.2*W0.7*H1.06in.]      		 10M
      [32.8ft.]      		 24VDC 5W R: 610-630nm
      G: 520-540nm
      B: 460-480nm
      W: 2700-6500K      		 130lm 120lm IP67
      [Wet]
      &
      IK08
      OSL-2718-24-M4-0304-B-CVXX 30°  270lm 250lm
      OSL-2718-24-M4-0304-C-CVXX 45°  260lm 240lm
      OSL-2718-24-M4-0304-D-CVXX 60°  260lm 240lm
      OSL-2718-24-M4-0609-E-CVXX  120° L615*W18*H27mm
      [L24.2*W0.7*H1.06in.]      		 10W 270lm 250lm
      OSL-2718-24-M4-0609-B-CVXX  30° 540lm 500lm
      OSL-2718-24-M4-0609-C-CVXX 45°  510lm 480lm
      OSL-2718-24-M4-0609-D-CVXX 60°  510lm 480lm
      OSL-2718-24-M4-1000-E-CVXX  120° L1002*W18*H27mm
      [L39.4*W0.7*H1.06in.]      		 18W 500lm 470lm
      OSL-2718-24-M4-1000-B-CVXX  30° 910lm 850lm
      OSL-2718-24-M4-1000-C-CVXX 45°  830lm 780lm
      OSL-2718-24-M4-1000-D-CVXX 60°  830lm 780lm
      OSL-2718-24-M4-1220-E-CVXX 120° L1226*W18*H27mm
      [L48.2*W0.7*H1.06in.]      		 20W 570lm 530lm
      OSL-2718-24-M4-1220-B-CVXX  30° 1020lm 950lm
      OSL-2718-24-M4-1220-C-CVXX 45°  930lm 870lm
      OSL-2718-24-M4-1220-D-CVXX 60°  930lm 870lm
      Download
      -

      • Datasheet - COSMO SERIES - OSL-2718

      • Spectrum Report - COSMO SERIES - OSL-2718

      • IES Report - COSMO SERIES - OSL-2718

      Details
      -








      Application

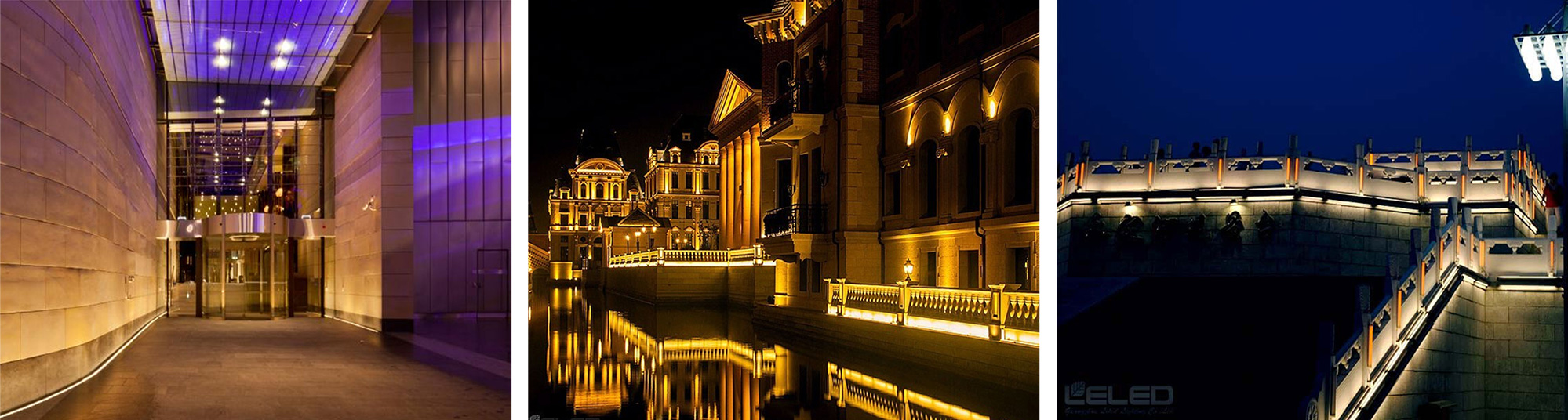

      1. Contour lighting, wall washing lighting and wall grazing lighting for architecture and landscape.
