Aqua Series - Swimming Pool - Top-Bend NS-131-1616SP & Side-Bend NS-224-1120SP/NS-230-1616SP

Features | Parameters | Download | Details

Features
-

1. IP68/IP69K waterproofing up to 3M[9.84ft.] underwater immersible application.
2. Adopting multiple waterproof designs, such as ultra-thin coating layer on PCBA, underwater dedicated cable, thickened wire pressing copper ring, good sealing hydraulic end cap and high forces-withstand structure.
3. Compact and sturdy structural design with IK08 impact resistance.
4. Exquisite appearance and soft touch thanks to the dust-proof matte finishing coating.
5. Consistent overall size and homogeneous lighting performance in 5M[16.4ft.] run length.
6. Excellent silicone material with high weather resistance (UV, yellowing, heat, and cold resistance), and excellent chemical stability (chlorine, ozone, acid, and alkali resistance).
7. Dimming available with PWM signal.
8. 50,000 hours LED lifespan, and 3 years warranty.
9. CE approved that includes the segmented application standard EN IEC 60598-2-18 (Particular requirements - Luminaires for swimming pools and similar applications).
10. UL676 certified (Safety for Underwater Luminaires and Submersible Junction Boxes) with file No. in E541111 under the catalog of WBDT/7 (luminaires and forming shells).

Parameters
-

Top-Bend NS-131 (Non-US&CA Market)

Part No.	Style	Dimension	Max. Run Length	Increment	LED Type	LED Qty	Voltage	Power	CCT / Wavelength	Brightness @4000K&CRI80	Light Efficiency @4000K&CRI80	Brightness @4000K&CRI90	Light Efficiency @4000K&CRI90	Beam Angle	IP&IK Rating
NS-131TX24VAW-14-1616SP	Top-Bend (White Swimming Pool Underwater)	W16H16mm [W0.63H0.63in.]	5M [16.4ft.] (Factory made only)	Free-cutting to be any length	SMD 2835	120LED/M [36LED/ft.]	DC24V	14W/M [4.3W/ft.]	2700K±120K 3000K±150K 3500K±300K 4000K±300K 5000K±400K 6000K±500K	941lm/M [287lm/ft.]	58lm/W	800lm/M [244lm/ft.]	57lm/W	120°	IP68/IP69K [Wet] (Max.3M underwater) & IK08
NS-131TX24VAC-14-1616SP	Top-Bend (CCT Swimming Pool Underwater)	50mm [1.97in.]	SMD 2835	240LED/M [73LED/ft.]	W:2700-6500K CCT-Tunable	906lm/M [276lm/ft.]	57lm/W	770lm/M [235lm/ft.]	55lm/W
NS-131TX24VFM-14-1616SP	Top-Bend (RGB Swimming Pool Underwater)	50mm [1.97in.]	SMD 4040	120LED/M [36LED/ft.]	R:620-630nm G:515-530nm B:460-470nm	340lm/M [104lm/ft.]	24lm/W	\	\

Part No.

Style

Dimension

Max. Run Length

Increment

LED Type

LED Qty

Voltage

Power

CCT / Wavelength

Brightness
@4000K&CRI80

Light Efficiency
@4000K&CRI80

Brightness
@4000K&CRI90

Light Efficiency
@4000K&CRI90

Beam

Angle

IP&IK Rating

NS-131TX24VAW-14-1616SP

Top-Bend

(White Swimming Pool Underwater)

W16*H16mm
[W0.63*H0.63in.]

5M [16.4ft.]

(Factory made only)

Free-cutting
to be any length

SMD
2835

120LED/M
[36LED/ft.]

DC24V

14W/M
[4.3W/ft.]

2700K±120K
3000K±150K
3500K±300K
4000K±300K
5000K±400K
6000K±500K

941lm/M
[287lm/ft.]

58lm/W

800lm/M
[244lm/ft.]

57lm/W

120°

IP68/IP69K

[Wet]
(Max.3M
underwater)
&

IK08

NS-131TX24VAC-14-1616SP

Top-Bend

(CCT Swimming Pool Underwater)

50mm
[1.97in.]

SMD
2835

240LED/M
[73LED/ft.]

W:2700-6500K

CCT-Tunable

906lm/M
[276lm/ft.]

57lm/W

770lm/M
[235lm/ft.]

55lm/W

NS-131TX24VFM-14-1616SP

Top-Bend

(RGB Swimming Pool Underwater)

50mm
[1.97in.]

SMD
4040

120LED/M
[36LED/ft.]

R:620-630nm

G:515-530nm

B:460-470nm

340lm/M
[104lm/ft.]

24lm/W

Side-Bend NS-230 (Non-US&CA Market)

Part No.	Style	Dimension	Max. Run Length	Increment	LED Type	LED Qty	Voltage	Power	CCT/Wavelength	Brightness @4000K&CRI80	Light Efficiency @4000K&CRI80	Brightness @4000K&CRI90	Light Efficiency @4000K&CRI90	Beam Angle	IP&IK Rating
NS-230SX24VAW-14-1616SP	Side-Bend (White Swimming Pool Underwater)	W16xH16mm [W0.63XH0.63in.]	5M [16.4ft.]	Free-cutting to be any length	SMD 2835	120LED/M [37LED/ft.]	DC24V	14W/M [4.3W/ft.]	2700K±120K 3000K±150K 3500K±300K 4000K±300K 5000K±400K 6000K±500K	776lm/M [235lm/ft.]	55lm/W	660lm/M [201lm/ft.]	47lm/W	120°	IP68/IP69K [Wet] (Max.3M underwater) & IK08

Part No.

Style

Dimension

Max. Run Length

Increment

LED Type

LED Qty

Voltage

Power

CCT/Wavelength

Brightness
@4000K&CRI80

Light Efficiency

@4000K&CRI80

Brightness
@4000K&CRI90

Light Efficiency

@4000K&CRI90

Beam

Angle

IP&IK
Rating

NS-230SX24VAW-14-1616SP

Side-Bend
(White Swimming Pool Underwater)

W16xH16mm
[W0.63XH0.63in.]

5M [16.4ft.]

Free-cutting
to be any length

SMD

2835

120LED/M
[37LED/ft.]

DC24V

14W/M
[4.3W/ft.]

2700K±120K
3000K±150K
3500K±300K
4000K±300K
5000K±400K
6000K±500K

776lm/M
[235lm/ft.]

55lm/W

660lm/M
[201lm/ft.]

47lm/W

120°

IP68/IP69K

[Wet]
(Max.3M
underwater)
&

IK08

Side-Bend NS-224 (Non-US&CA Market)

Part No.	Style	Dimension	Max. Run Length	Increment	LED Type	LED Qty	Voltage	Power	CCT / Wavelength	Brightness @4000K&CRI80	Light Efficiency @4000K&CRI80	Brightness @4000K&CRI90	Light Efficiency @4000K&CRI90	Beam Angle	IP&IK Rating
NS-224SX24VAW-14-1120SP	Side-Bend (White Swimming Pool Underwater)	W11.5H20mm [W0.45H0.79in.]	5M [16.4ft.] (Factory made only)	Free-cutting to be any length	SMD 2835	120LED/M [36LED/ft.]	DC24V	14W/M [4.3W/ft.]	2700K±120K 3000K±150K 3500K±300K 4000K±300K 5000K±400K 6000K±500K	671lm/M [205lm/ft.]	48lm/W	570lm/M [174lm/ft.]	41lm/W	120°	IP68/IP69K [Wet] (Max.3M underwater) & IK08
NS-224SX24VAC-14-1120SP	Side-Bend (CCT Swimming Pool Underwater)	50mm [1.97in.]	SMD 2835	24LED/M [73LED/ft.]	W:2700-6500K CCT-Tunable	546lm/M [166lm/ft.]	39lm/W	460lm/M [140lm/ft.]	33lm/W
NS-224SX24VFM-14-1120SP	Side-Bend (RGB Swimming Pool Underwater)	50mm [1.97in.]	SMD 4040	120LED/M [36LED/ft.]	R:620-630nm G:515-530nm B:460-470nm	270lm/M [82lm/ft.]	19lm/W	\	\

Part No.

Style

Dimension

Max. Run Length

Increment

LED Type

LED Qty

Voltage

Power

CCT / Wavelength

Brightness
@4000K&CRI80

Light Efficiency
@4000K&CRI80

Brightness
@4000K&CRI90

Light Efficiency
@4000K&CRI90

Beam

Angle

IP&IK Rating

NS-224SX24VAW-14-1120SP

Side-Bend
(White Swimming Pool Underwater)

W11.5*H20mm
[W0.45*H0.79in.]

5M [16.4ft.]

(Factory made only)

Free-cutting
to be any length

SMD
2835

120LED/M
[36LED/ft.]

DC24V

14W/M
[4.3W/ft.]

2700K±120K
3000K±150K
3500K±300K
4000K±300K
5000K±400K
6000K±500K

671lm/M
[205lm/ft.]

48lm/W

570lm/M
[174lm/ft.]

41lm/W

120°

IP68/IP69K [Wet]
(Max.3M
underwater)
&

IK08

NS-224SX24VAC-14-1120SP

Side-Bend
(CCT Swimming Pool Underwater)

50mm
[1.97in.]

SMD
2835

24LED/M
[73LED/ft.]

W:2700-6500K

CCT-Tunable

546lm/M
[166lm/ft.]

39lm/W

460lm/M
[140lm/ft.]

33lm/W

NS-224SX24VFM-14-1120SP

Side-Bend
(RGB Swimming Pool Underwater)

50mm
[1.97in.]

SMD
4040

120LED/M
[36LED/ft.]

R:620-630nm

G:515-530nm

B:460-470nm

270lm/M
[82lm/ft.]

19lm/W

Top-Bend NS-131 (US&CA Market)

Part No.	Style	Dimension	Max. Run Length	Increment	LED Type	LED Qty	Voltage	Power	CCT / Wavelength	Brightness @4000K&CRI80	Light Efficiency @4000K&CRI80	Brightness @4000K&CRI90	Light Efficiency @4000K&CRI90	Beam Angle	IP&IK Rating
NS-131TX24VAW-14-1616SP	Top-Bend (White Swimming Pool Underwater)	W16H16mm [W0.63H0.63in.]	5M [16.4ft.] (Factory made only)	Free-cutting to be any length	SMD 2835	120LED/M [36LED/ft.]	DC24V	14W/M [4.3W/ft.]	2700K±120K 3000K±150K 3500K±300K 4000K±300K 5000K±400K 6000K±500K	938lm/M [286lm/ft.]	67lm/W	800lm/M [244lm/ft.]	57lm/W	120°	IP68/IP69K [Wet] (Max.3M underwater) & IK08
NS-131TX24VAC-14-1616SP	Top-Bend (CCT Swimming Pool Underwater)			50mm [1.97in.]	SMD 2835	240LED/M [73LED/ft.]			W:2700-6500K CCT-Tunable	910lm/M [277lm/ft.]	65lm/W	770lm/M [235lm/ft.]	55lm/W
NS-131TX24VFM-14-1616SP	Top-Bend (RGB Swimming Pool Underwater)			50mm [1.97in.]	SMD 4040	120LED/M [36LED/ft.]			R:620-630nm G:515-530nm B:460-470nm	340lm/M [104lm/ft.]	24lm/W	\	\
NS-131TX24VFN-14-1616SP	Top-Bend (RGBW Swimming Pool Underwater)			50mm [1.97in.]	SMD 4040	120LED/M [36LED/ft.]			R:620-630nm G:515-530nm B:460-470nm W:2700-6500K	\	\	425lm/M [130lm/ft.]	30lm/W

Side-Bend NS-224 (US&CA Market)

Part No.	Style	Dimension	Max. Run Length	Increment	LED Type	LED Qty	Voltage	Power	CCT / Wavelength	Brightness @4000K&CRI80	Light Efficiency @4000K&CRI80	Brightness @4000K&CRI90	Light Efficiency @4000K&CRI90	Beam Angle	IP&IK Rating
NS-224SX24VAW-14-1120SP	Side-Bend (White Swimming Pool Underwater)	W11.5H20mm [W0.45H0.79in.]	5M [16.4ft.] (Factory made only)	Free-cutting to be any length	SMD 2835	120LED/M [36LED/ft.]	DC24V	14W/M [4.3W/ft.]	2700K±120K 3000K±150K 3500K±300K 4000K±300K 5000K±400K 6000K±500K	672lm/M [205lm/ft.]	48lm/W	570lm/M [174lm/ft.]	41lm/W	120°	IP68/IP69K [Wet] (Max.3M underwater) & IK08
NS-224SX24VAC-14-1120SP	Side-Bend (CCT Swimming Pool Underwater)			50mm [1.97in.]	SMD 2835	24LED/M [73LED/ft.]			W:2700-6500K CCT-Tunable	546lm/M [166lm/ft.]	39lm/W	460lm/M [140lm/ft.]	33lm/W
NS-224SX24VFM-14-1120SP	Side-Bend (RGB Swimming Pool Underwater)			50mm [1.97in.]	SMD 4040	120LED/M [36LED/ft.]			R:620-630nm G:515-530nm B:460-470nm	270lm/M [82lm/ft.]	19lm/W	\	\
NS-224SX24VFN-14-1120SP	Side-Bend (RGBW Swimming Pool Underwater)			50mm [1.97in.]	SMD 4040	120LED/M [36LED/ft.]			R: 620-630nm G:515-530nm B:460-470nm W:2700-6500K	\	\	290lm/M [88lm/ft.]	21lm/W
NS-224SX24DFN-14-1120SP	Side-Bend (DMX RGBW Swimming Pool Underwater)			125mm [4.92in.]	SMD 4040	96LED/M [29LED/ft.]			R:620-630nm G:515-530nm B:460-470nm W:2700-6500K	\	\	270lm/M [82lm/ft.]	19lm/W

Download
-

Datasheet - Aqua Series - Swimming Pool - Top-Bend NS-131 & Side-Bend NS-224/NS-230

Spectrum Report - Aqua Series - Swimming Pool - Top-Bend NS-131 & Side-Bend NS-224/NS-230

IES Report - Aqua Series - Swimming Pool - Top-Bend NS-131 & Side-Bend NS-224/NS-230

Details
-

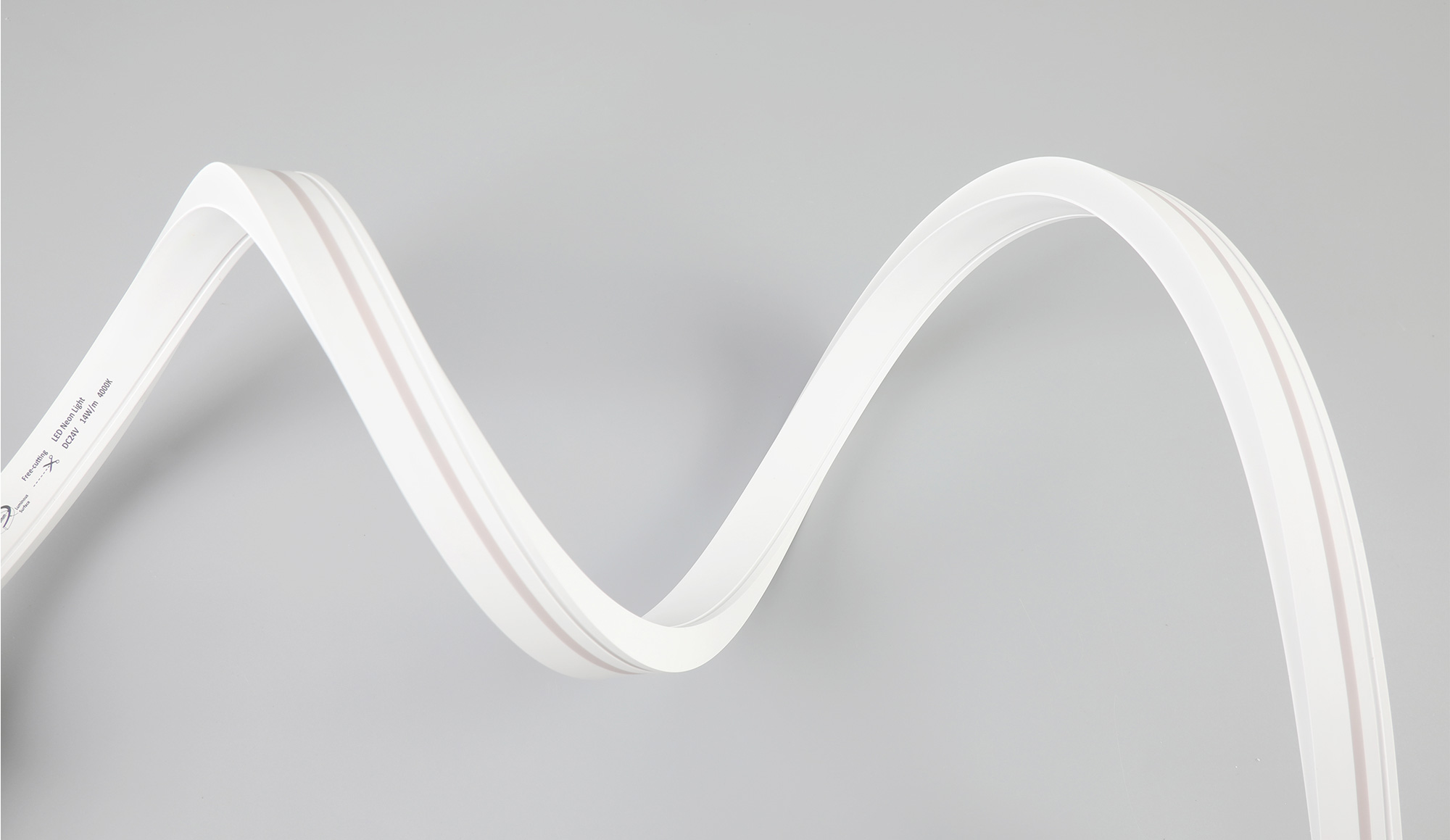

Top-Bend NS-131 (Non-US&CA / US&CA)

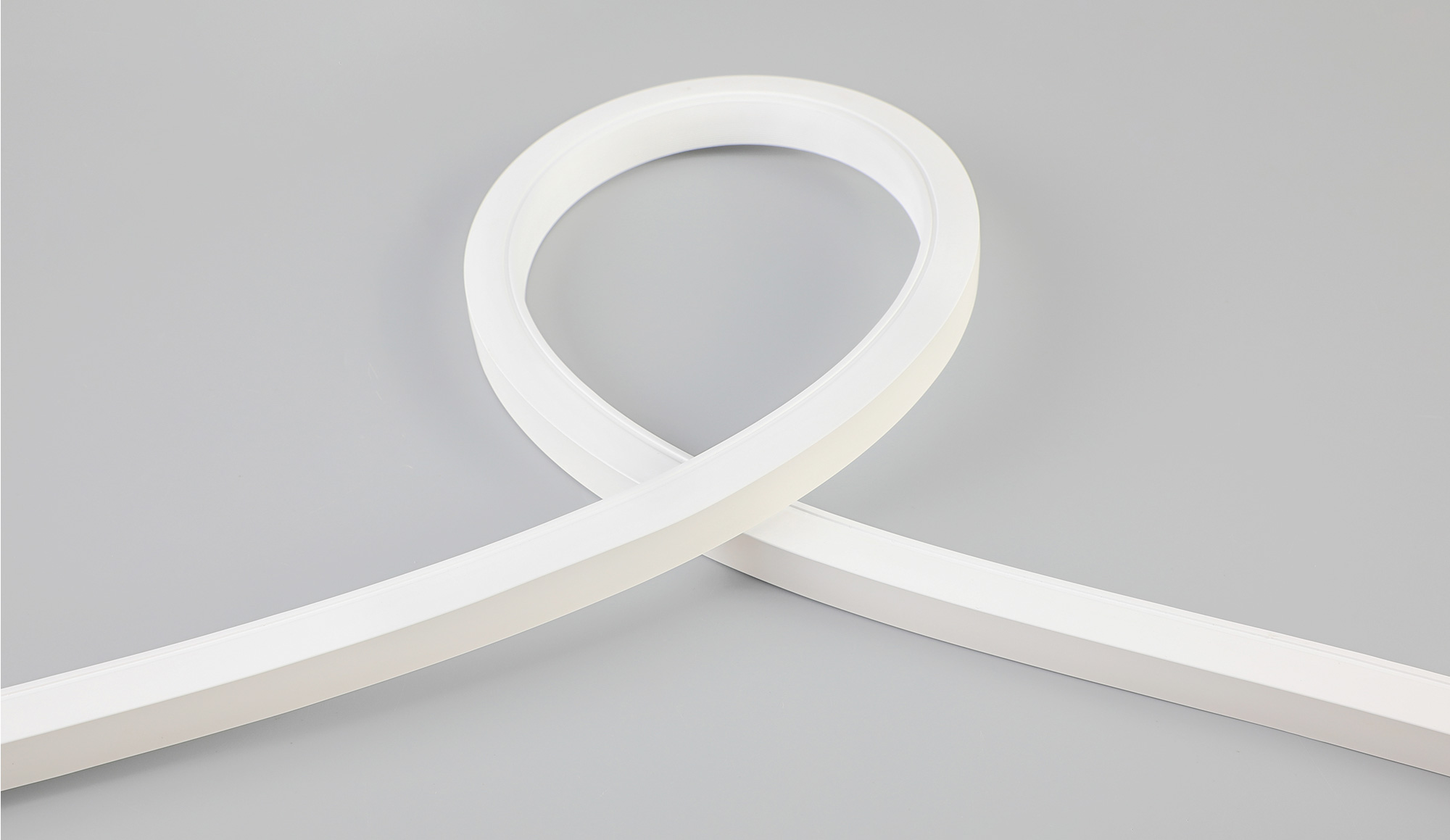

Side-Bend NS-224 (Non-US&CA / US&CA)

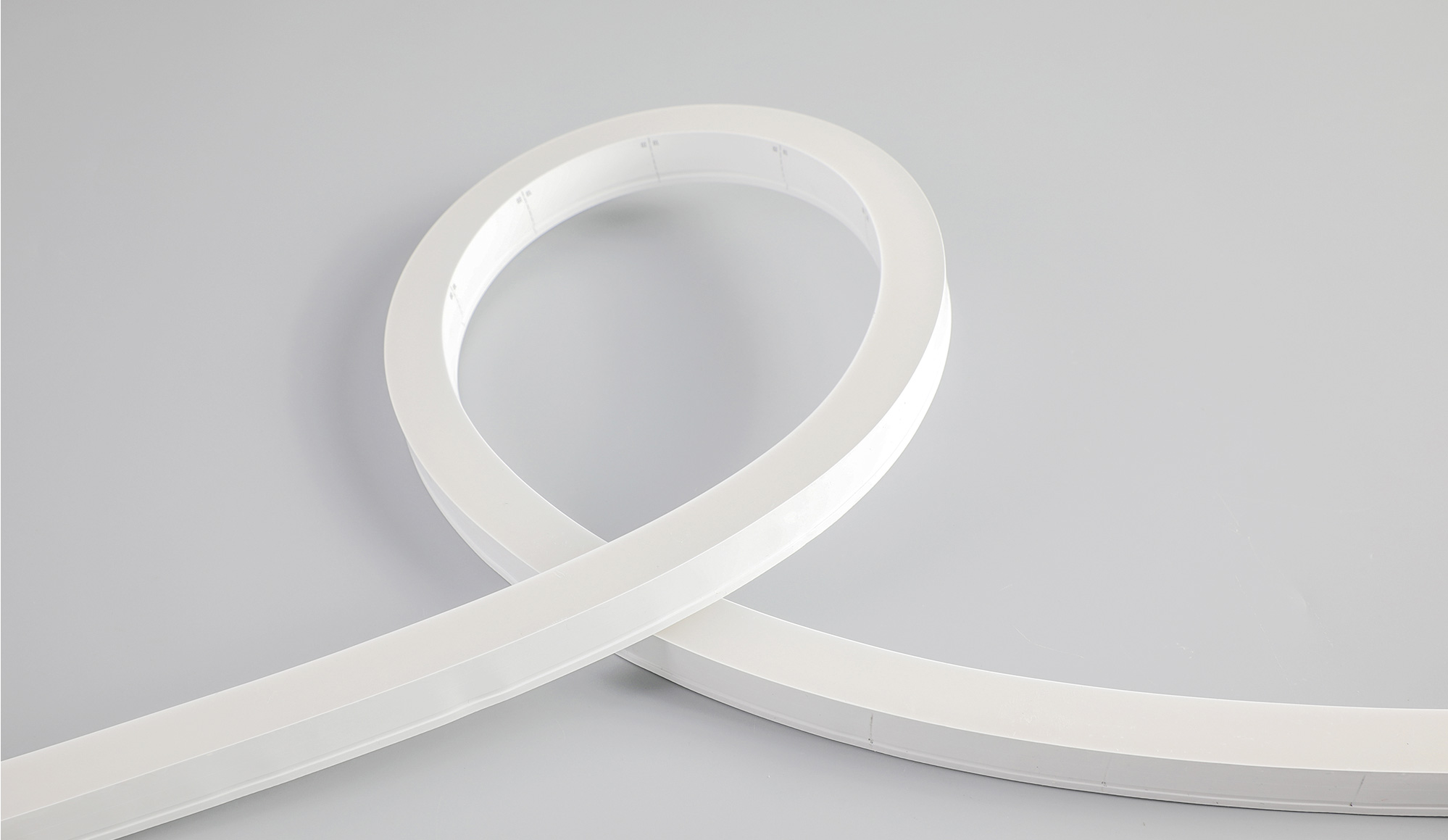

Side-Bend NS-230 (Non-US&CA)

Application

Ideal for swimming pools, spa, landscape pools, vertical waterfalls, modern showers, and fountains applications.
